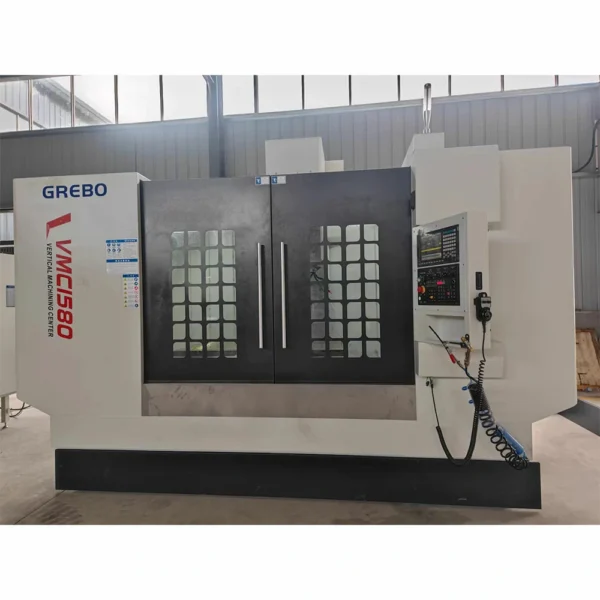

The VMC1580 vertical machining center is built for manufacturers requiring high rigidity and large travel capacity in heavy-duty milling applications.
Featuring a stress-relieved Meehanite cast structure, high-torque BT50 spindle, and precision linear guideways, this VMC1580 vertical machining center delivers stable accuracy across its full 1500mm X-axis travel.
With a 1700×800mm worktable, 1500kg load capacity, and 24-tool ATC, the VMC1580 vertical machining center handles large molds, automotive structural components, and industrial housings with efficient, repeatable results.
If you’re comparing vertical machining solutions across different travel ranges, browse our full range of
CNC machines or explore our dedicated
vertical machining center series to find the right fit for your production goals.
Key Features of VMC1580 Vertical Machining Center

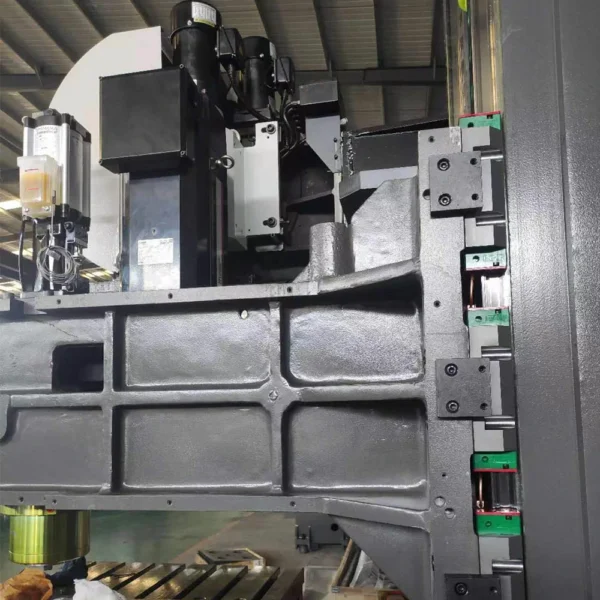

- BT50 heavy-duty spindle system with 15/18.5 kW motor for strong cutting capacity on steel, cast iron, and alloys
- Large 1700×800 mm worktable with 1500 kg load capacity for oversized molds and structural parts

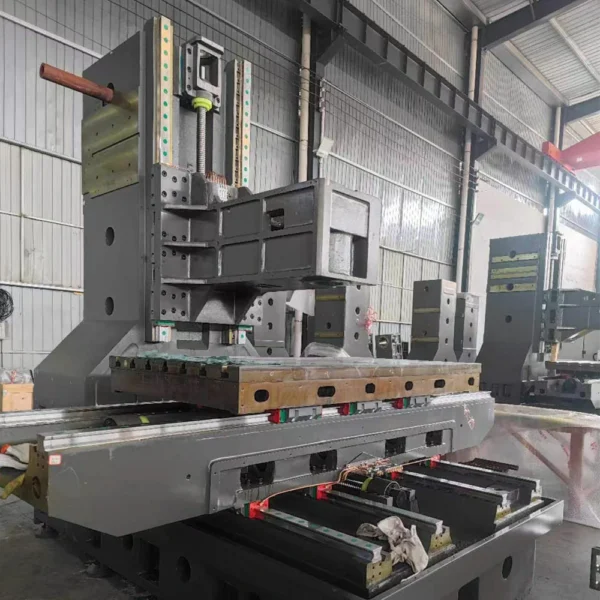

- High-rigidity Meehanite cast base and column, stress-relieved to minimize thermal deformation
- 24-tool BT50 arm-type ATC for fast, reliable tool changes in high-mix production
- Linear guideways or heavy-duty box ways (optional) for smooth motion under heavy loads

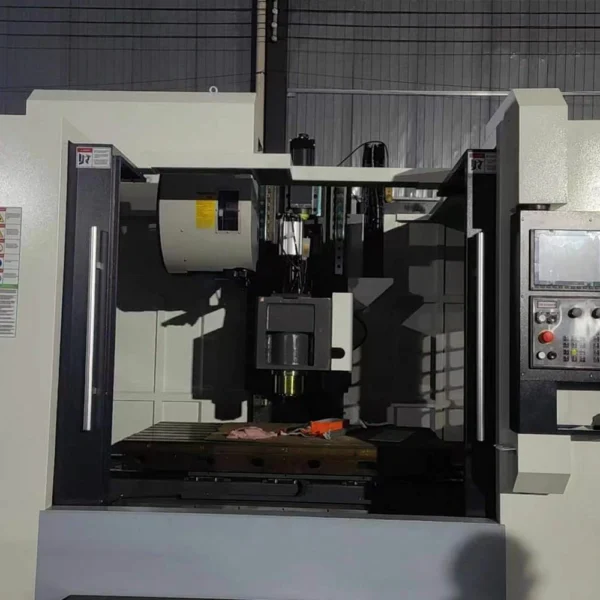

- Full enclosed protective structure with telescopic covers for chip containment and operator safety
- Centralized automatic lubrication and coolant system for low maintenance and clean operation
- Compatible with Mitsubishi M80A, Fanuc 0i-MF, Siemens 828D, or Syntec controllers
Technical Specifications of VMC1580 Vertical Machining Center
| Item | Specification |
|---|---|
| Worktable Size | 1700 × 800 mm |
| Max Load Capacity | 1500 kg |
| X/Y/Z Axis Travel | 1500 / 800 / 700 mm |
| Spindle Taper | BT50 |
| Spindle Speed Range | 50–6000 rpm |
| Spindle Motor Power | 15 / 18.5 kW |
| Rapid Traverse Rate | 12 m/min |
| Tool Magazine Capacity | 24 tools (arm-type ATC) |
| Machine Weight | 13000 kg |
| Positioning Accuracy | ±0.005 mm |
| Repeat Positioning Accuracy | ±0.003 mm |
⚠️ Note: Specifications are subject to change without prior notice. Machines may be shown with optional equipment.
Standard Configuration of VMC1580 Vertical Machining Center
- Mitsubishi M80A CNC control system (Fanuc/Siemens/Syntec optional)
- BT50 belt-driven spindle, 6000 rpm, 15/18.5 kW
- 24-tool arm-type automatic tool changer (ATC)
- Linear guideways on X/Y/Z axes (box ways optional for heavy cutting)
- Automatic centralized lubrication system
- Coolant system with chip tray and air/water gun
- Full enclosure with safety interlocks and telescopic rail covers
- Work lamp, tri-color status indicator, and MPG handwheel
- Electrical cabinet heat exchanger for thermal stability
- Leveling pads, anchor bolts, and complete tool kit included
Optional Configuration for VMC1580 Vertical Machining Center
- CNC controller upgrade: Fanuc 0i-MF / Siemens 828D / Syntec
- Spindle oil cooler for thermal stability during long runs
- CTS (Coolant Through Spindle) 20/30 bar for deep-hole drilling
- Renishaw TS27R tool probe + OMP60 workpiece probe for in-process verification
- 4th axis rotary table (manual or CNC) for multi-face machining
- 90° milling head or auto/manual angle head for complex contours
- Chain-type ATC (30/40 tools) for expanded tooling capacity
- Heidenhain linear scales for closed-loop high-precision applications
- Cabinet air conditioner for hot/humid workshop environments
- Heavy-duty box way upgrade for maximum rigidity in roughing operations
Why Shops Choose the VMC1580 Vertical Machining Center
- 🔹 BT50 Power for Heavy Cutting: 15/18.5 kW spindle delivers high torque for efficient roughing of steel, cast iron, and tough alloys—reducing cycle time on large parts
- 🔹 Large Work Envelope, Stable Accuracy: 1500mm X-travel with ±0.005mm positioning holds tight tolerances across the full table, ideal for molds and structural components
- 🔹 Rigid Meehanite Construction: Stress-relieved cast base and column minimize vibration and thermal drift, ensuring consistent surface finish shift after shift
- 🔹 Flexible for High-Mix Production: 24-tool ATC + optional probing + 4th axis support lets you run diverse part families without constant retooling
- 🔹 Ready for Global Deployment: CE-compliant electricals, Schneider components, and multi-language CNC options support international shop standards
Applications of VMC1580 Vertical Machining Center
The VMC1580 vertical machining center excels in medium-to-large part machining where rigidity, travel capacity, and repeatability drive productivity:
- ✅ Large mold manufacturing: injection molds, die-casting dies, stamping dies, plastic molds
- ✅ Automotive structural components: chassis brackets, suspension mounts, battery trays, body-in-white fixtures
- ✅ Industrial machinery: machine bases, gearbox housings, pump casings, valve bodies
- ✅ Energy & heavy equipment: wind turbine components, hydraulic manifolds, mining equipment parts
- ✅ General precision machining: large flanges, frames, plates, and custom structural components
For teams evaluating machining strategies for large structural components, industry standards and best practices from
ISO (International Organization for Standardization) provide valuable guidance on process validation and quality management in metal cutting.
If your project involves large mold manufacturing, learn more about our
CNC solutions for mold making, or explore how we support
automotive component machining across diverse production scales.
Custom Solutions & WhatsApp Support
Need a customized VMC1580 vertical machining center configuration, heavy-duty upgrade, or a detailed quotation?
Our engineering team can help you spec the right vertical machining setup for your mold, automotive, or industrial component production line.
