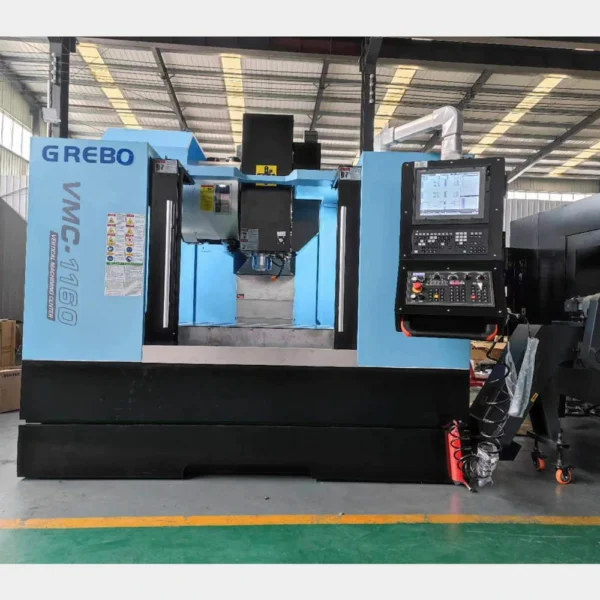

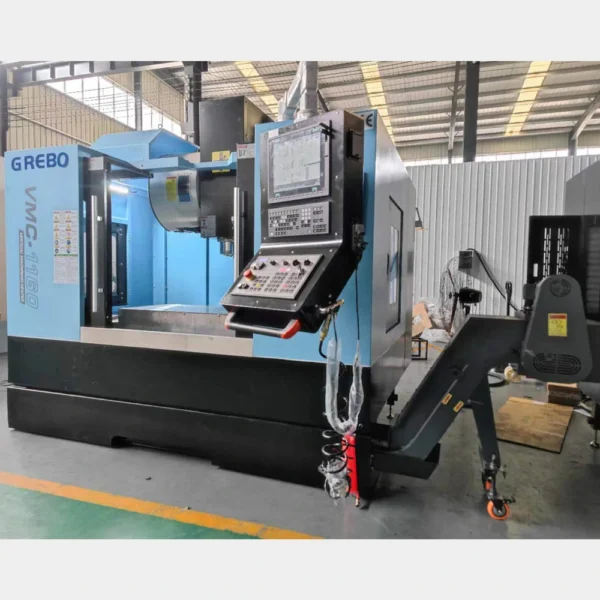

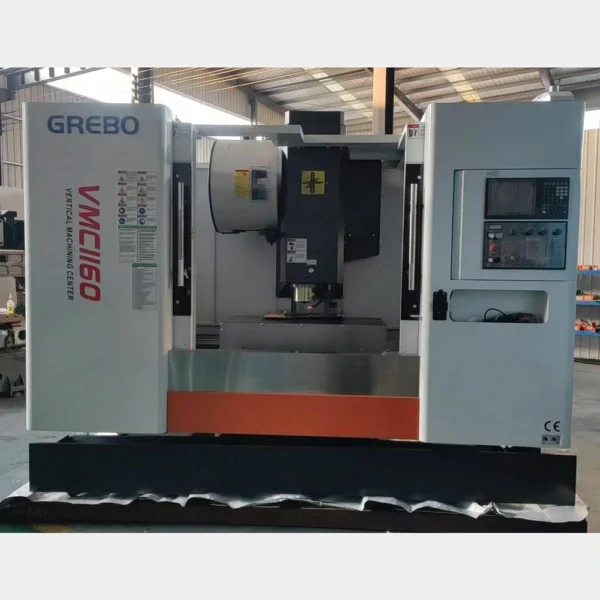

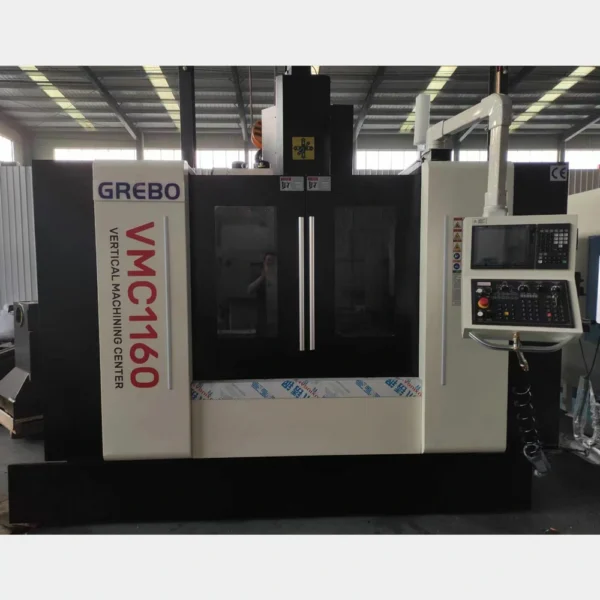

When precision meets versatility, the VMC1160 vertical machining center delivers. Built around a stress-relieved Meehanite HT-300 cast structure and C3-class precision ballscrews, this VMC1160 vertical machining center handles everything from aluminum housings to steel molds with consistent ±0.008mm accuracy.
Whether you’re running prototype batches or high-volume production, the VMC1160 vertical machining center adapts—thanks to its flexible CNC options, 24-tool ATC, and compact 1200×600mm footprint that fits tight shop layouts without sacrificing capability.
Comparing options? Browse our full CNC machines lineup or dive deeper into our vertical machining center series to match specs with your production goals.
What Makes the VMC1160 Stand Out

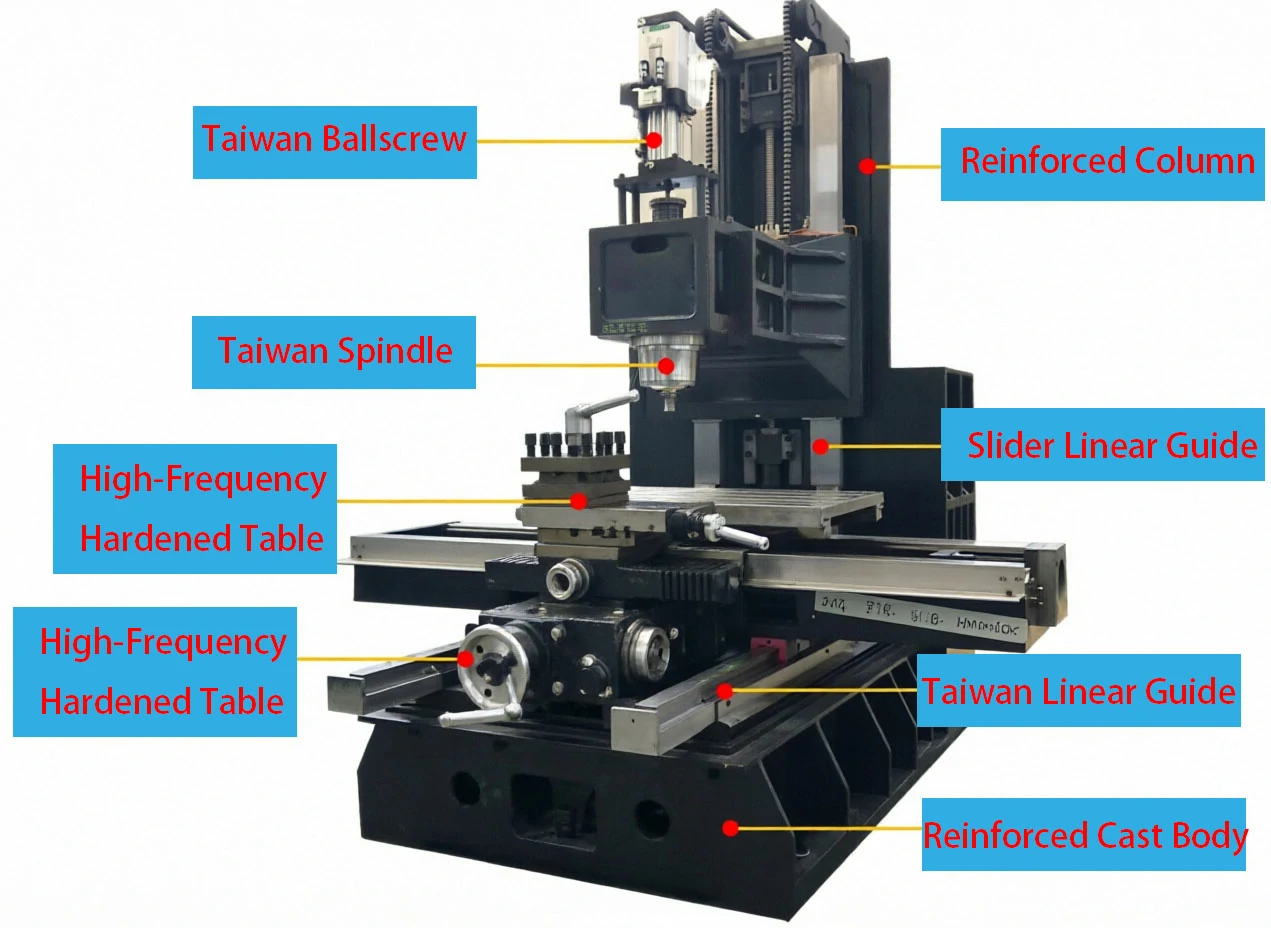

Meehanite HT-300 cast bed, stress-relieved to minimize vibration and thermal drift during heavy cuts
C3-grade ballscrews + HIWIN linear guides on all three axes for smooth, repeatable positioning
Choose Fanuc, Mitsubishi, Siemens, or Syntec CNC systems to match your shop’s workflow
24-pocket arm-type ATC switches tools in seconds, keeping high-mix production moving
VMC1160 Technical Specifications
| X/Y/Z Axis Travel | 1100 / 600 / 600 mm |
|---|---|
| Worktable Size | 1200 × 600 mm |
| Max Table Load | 800 kg |
| Spindle Taper / Speed | BT40 • 50–12000 rpm (optional direct-drive) |
| Spindle Motor Power | 11 / 15 kW |
| Rapid Traverse (X/Y/Z) | 30 / 30 / 24 m/min |
| Cutting Feed Range | 1–10000 mm/min |
| Tool Magazine | 24 tools, arm-type ATC |
| Positioning / Repeat Accuracy | ±0.008 mm / ±0.005 mm |
| Machine Footprint (L×W×H) | 3100 × 2550 × 2800 mm |
| Net Weight | 6800 kg |
⚠️ Specifications subject to change. Machines may include optional equipment in photos.
What’s Included with Your VMC1160
Every VMC1160 vertical machining center ships ready to produce—no hidden add-ons required:
- ✓ Mitsubishi M80A CNC control (upgrade options available)
- ✓ Taiwan direct-drive spindle, 12000 rpm, BT40 taper
- ✓ Mitsubishi servo motors on all axes for responsive motion
- ✓ 24-tool arm-type ATC for efficient high-mix runs
- ✓ Rigid tapping + spindle air blow (ATS) for clean threads
- ✓ Full enclosure with telescopic rail covers + safety door
- ✓ Auto-lube system + coolant with chip tray
- ✓ Work lamp, tri-color status indicator, MPG handwheel
- ✓ Cabinet heat exchanger for thermal stability
- ✓ Leveling hardware, tool kit, and user documentation
Where the VMC1160 Delivers Value
Shops choose the VMC1160 vertical machining center when they need one machine that adapts across diverse part families—without constant retooling or floor-space tradeoffs.
Inserts, cavities, ejector plates, prototype tooling
Brackets, sensor mounts, EV components, small castings
Pump housings, valve bodies, gearbox components
Flanges, plates, frames, custom fixtures
For teams validating machining processes, standards from
ISO (International Organization for Standardization) offer practical frameworks for quality management in metal cutting.
Working on mold projects? See our CNC solutions for mold making, or explore how we support general machining applications across industries.
Ready to See the VMC1160 in Action?
Whether you need help selecting spindle options, planning automation integration, or getting a detailed quote for your VMC1160 vertical machining center—our engineers are here to help.
