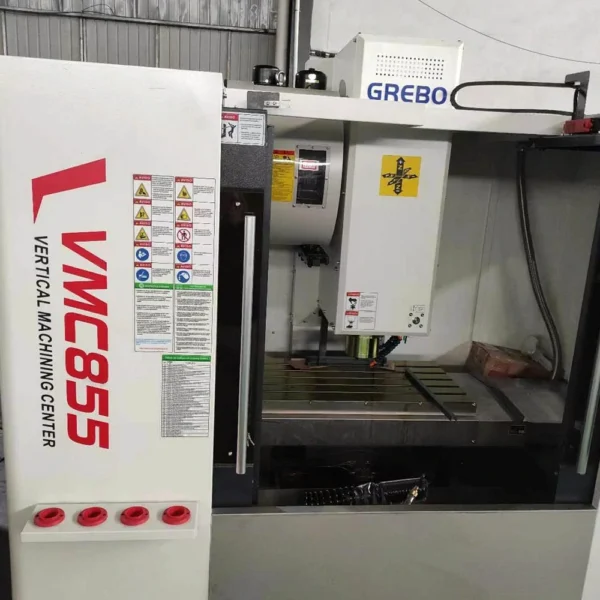

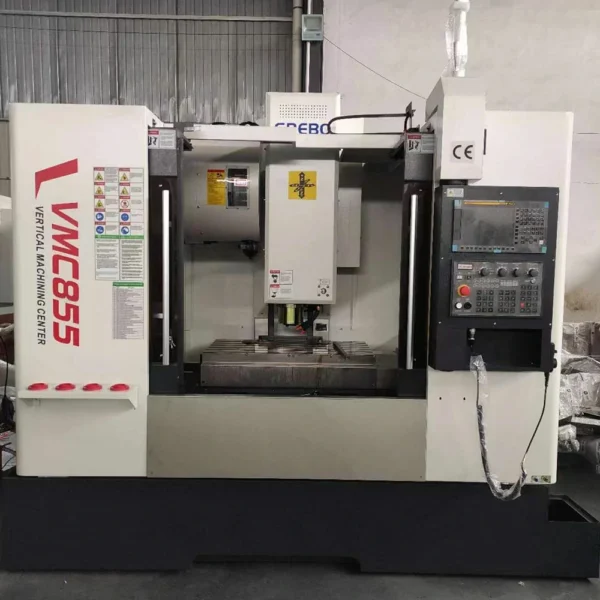

The VMC855 vertical machining center is engineered for manufacturers who need stable precision machining without sacrificing floor space.
Featuring a stress-relieved Meehanite HT-300 cast structure, C3-grade precision ballscrews, and high-rigidity linear guideways, this VMC855 vertical machining center delivers consistent ±0.0075mm positioning accuracy across its full 850mm X-axis travel.
With a compact 1000×500mm worktable, 550kg load capacity, and 8000rpm spindle, the VMC855 vertical machining center excels at high-volume production of small-to-medium precision components—ideal for automotive, electronics, and general metalworking shops.
If you’re comparing compact vertical machining solutions, browse our full range of
CNC machines or explore our dedicated
vertical machining center series to find the right footprint for your production goals.
Key Features of VMC855 Vertical Machining Center

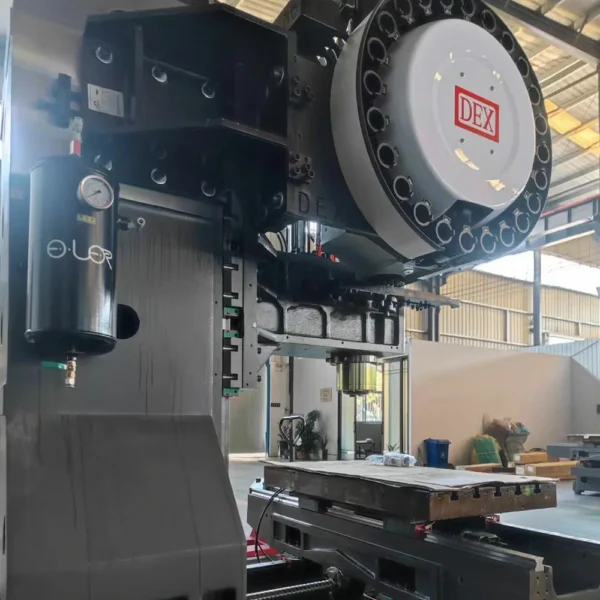

- Meehanite HT-300 cast iron structure with stress-relief treatment for superior damping and thermal stability
- C3-grade precision ballscrews with direct-drive transmission for minimal backlash and tight-tolerance work
- High-rigidity linear guideway system on X/Y/Z axes ensures smooth motion under varying cutting loads
- 8000rpm spindle with 7.5/11 kW motor delivers stable cutting performance for aluminum, steel, and alloys
- 24-tool arm-type automatic tool changer (ATC) enables fast switching for high-mix small-part production
- Compact 1000×500mm worktable with 550kg capacity—optimized for small-to-medium precision components
- Fully enclosed protective design with telescopic rail covers for chip containment and operator safety
- Centralized automatic lubrication system reduces maintenance intervals and extends component life
- Compatible with FANUC, Mitsubishi, Siemens, or SYNTEC CNC controllers for flexible shop integration
Technical Specifications of VMC855 Vertical Machining Center
| Item | Specification |
|---|---|
| X Axis Travel | 850 mm |
| Y Axis Travel | 550 mm |
| Z Axis Travel | 550 mm |
| Worktable Size | 1000 × 500 mm |
| Max Load Capacity | 550 kg |
| Spindle Speed Range | 8000 rpm |
| Spindle Motor Power | 7.5 / 11 kW |
| Positioning Accuracy | ±0.0075 mm |
| Repeat Positioning Accuracy | ±0.005 mm |
| Machine Weight | 5600 kg |
⚠️ Note: Specifications are subject to change without prior notice. Machines may be shown with optional equipment.
Standard Configuration of VMC855 Vertical Machining Center

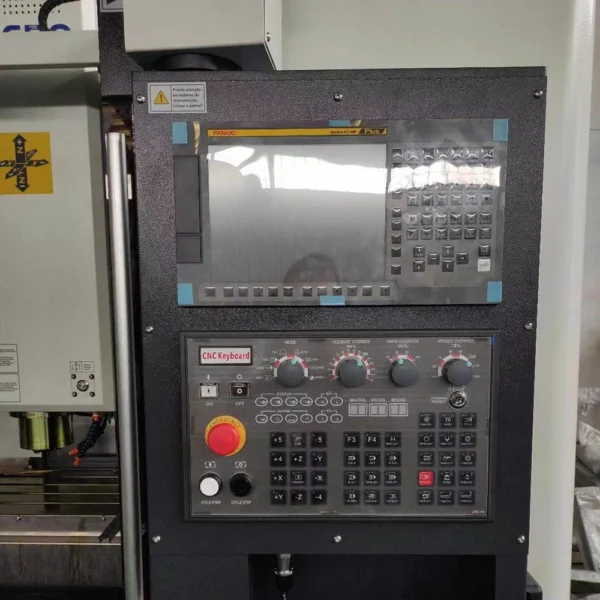

- CNC control system: FANUC / Mitsubishi / Siemens / SYNTEC (customer selection)
- 8000rpm spindle with 7.5/11 kW motor for versatile material machining
- 24-tool arm-type automatic tool changer (ATC) for efficient high-mix production
- High-rigidity linear guideways on X/Y/Z axes for smooth, precise motion
- C3-grade precision ballscrews with direct-drive transmission
- Automatic centralized lubrication system with low-level alarm
- Coolant system with chip tray and air/water gun for flexible cleaning
- Full enclosure with safety interlocks and telescopic rail covers
- Work lamp, tri-color status indicator, and MPG handwheel included
- Electrical cabinet heat exchanger for thermal stability in continuous operation
- Leveling pads, anchor bolts, and complete tool kit included
Optional Configuration for VMC855 Vertical Machining Center
- Spindle oil cooler for thermal stability during long high-speed runs
- CTS (Coolant Through Spindle) 20/30 bar for deep-hole drilling and chip evacuation
- Renishaw TS27R tool probe + OMP60 workpiece probe for in-process verification
- 4th axis rotary table (manual or CNC) for multi-face machining without re-fixturing
- 90° milling head or auto/manual angle head for complex contours and undercuts
- Chain-type ATC (30/40 tools) for expanded tooling capacity in high-mix production
- Heidenhain linear scales for closed-loop high-precision applications
- Cabinet air conditioner for hot/humid workshop environments
- Upgraded spindle bearing package for extended high-speed service life
Why Shops Choose the VMC855 Vertical Machining Center
- 🔹 Compact Precision Power: 850mm X-travel with ±0.0075mm positioning delivers tight tolerances in a space-saving footprint—perfect for shops with limited floor space
- 🔹 Stable Meehanite Construction: Stress-relieved HT-300 cast base minimizes vibration and thermal drift, ensuring consistent surface finish shift after shift
- 🔹 Flexible for High-Mix Small Parts: 24-tool ATC + optional probing + 4th axis support lets you run diverse small-part families without constant retooling
- 🔹 Ready for Automation: Compatible with bar feeders, part catchers, and probing systems—scale from manual loading to semi-automated cells as your needs grow
- 🔹 Global-Ready Integration: Multi-controller options, CE-compliant electricals, and Schneider components support international deployment standards
Applications of VMC855 Vertical Machining Center
The VMC855 vertical machining center excels in small-to-medium part machining where precision, stability, and footprint efficiency drive profitability:
- ✅ Precision metal components: brackets, connectors, sensor mounts, custom fasteners
- ✅ Automotive parts: EV motor components, transmission brackets, sensor housings, small castings
- ✅ Electronics & instrumentation: device housings, heat sinks, mounting plates, precision fixtures
- ✅ General industrial machining: aluminum/steel structural parts, pump components, valve bodies
- ✅ Prototype to production: flexible setup supports low-volume prototyping and high-volume batch runs
For teams optimizing machining processes for precision small components, industry standards and best practices from
ISO (International Organization for Standardization) provide valuable guidance on process validation and quality management in metal cutting.
If your project involves automotive small components, learn more about our
CNC solutions for the automotive industry, or explore how we support
general machining applications across diverse production scales.
Custom Solutions & WhatsApp Support
Need a customized VMC855 vertical machining center configuration, compact upgrade, or a detailed quotation?
Our engineering team can help you spec the right compact vertical machining setup for your precision small-part production line.
