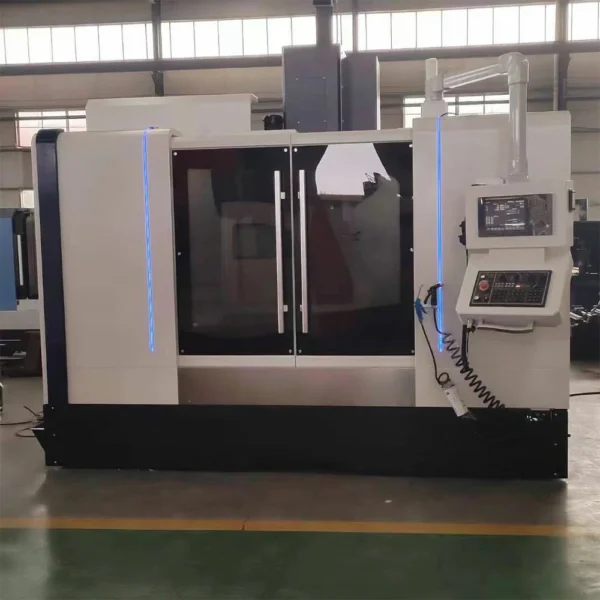

The VMC1265 vertical machining center is designed for manufacturers requiring stable cutting performance and high precision in continuous production environments.
Featuring a high-rigidity cast iron structure, HIWIN linear guideways, and C3-class precision ballscrews, this VMC1265 vertical machining center ensures long-term machining accuracy and operational stability across its full 1200mm X-axis travel.
With a 1200×600mm worktable, 800kg load capacity, and BT40 12000rpm direct-drive spindle, the VMC1265 vertical machining center handles medium-sized molds, automotive components, and precision industrial parts with efficient, repeatable results.
If you’re comparing vertical machining solutions across different travel ranges, browse our full range of
CNC machines or explore our dedicated
vertical machining center series to find the right fit for your production goals.
Key Features of VMC1265 Vertical Machining Center

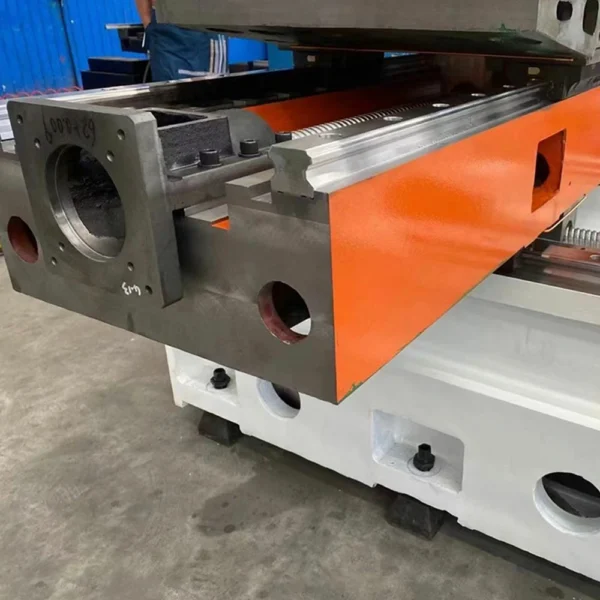

- High-rigidity cast iron machine structure with stress-relieved base for stable cutting under varying loads
- BT40 direct-drive spindle system with 12000 rpm capability for fine surface finish and high-speed milling
- HIWIN linear guide rail system on X/Y/Z axes for smooth motion, low friction, and long service life

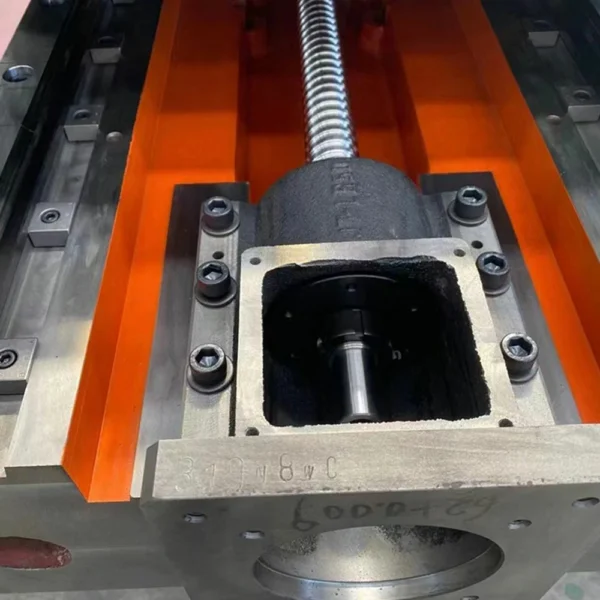

- C3-class precision ballscrews with direct-drive transmission for minimal backlash and tight-tolerance work
- 24-tool arm-type automatic tool changer (ATC) for fast, reliable switching in high-mix production
- Fully enclosed protective design with telescopic rail covers for chip containment and operator safety
- Centralized automatic lubrication and coolant system for low maintenance and clean operation
- Compatible with Siemens, Fanuc, Mitsubishi, or Syntec CNC controllers for flexible integration
Technical Specifications of VMC1265 Vertical Machining Center
| Item | Specification |
|---|---|
| Worktable Size | 1200 × 600 mm |
| Max Load Capacity | 800 kg |
| X/Y/Z Axis Travel | 1200 / 650 / 600 mm |
| Spindle Type | BT40 Direct Drive |
| Spindle Speed Range | 12000 rpm |
| Spindle Motor Power | 15 kW |
| Rapid Traverse Rate (X/Y/Z) | 36 / 36 / 30 m/min |
| Tool Magazine Capacity | 24 tools (arm-type ATC) |
| Positioning Accuracy | ±0.006 mm |
| Repeat Positioning Accuracy | ±0.003 mm |
| Machine Weight | 6800 kg |
⚠️ Note: Specifications are subject to change without prior notice. Machines may be shown with optional equipment.
Standard Configuration of VMC1265 Vertical Machining Center
- CNC control system: Siemens / Fanuc / Mitsubishi / Syntec (customer selection)
- BT40 direct-drive spindle, 12000 rpm, 15 kW motor
- 24-tool arm-type automatic tool changer (ATC)
- HIWIN linear guideways on X/Y/Z axes for precision motion
- HIWIN C3-class ballscrews with direct-drive transmission

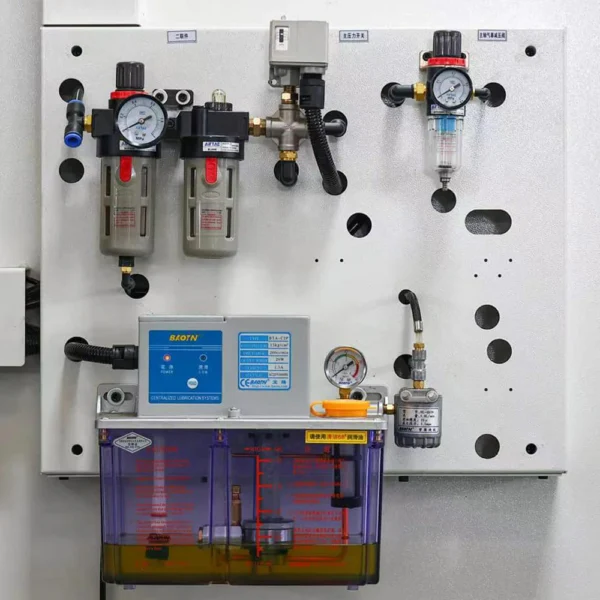

- Automatic centralized lubrication system with low-level alarm

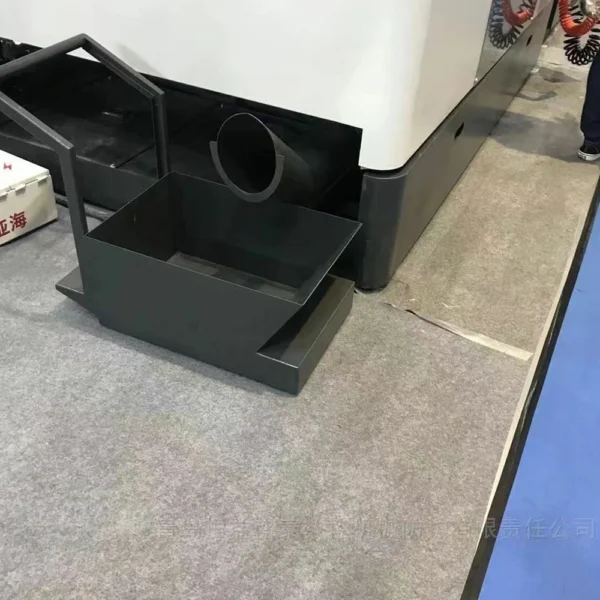

- Coolant system with chip tray and air/water gun for flexible cleaning
- Full enclosure with safety interlocks and telescopic rail covers
- Work lamp, tri-color status indicator, and MPG handwheel included

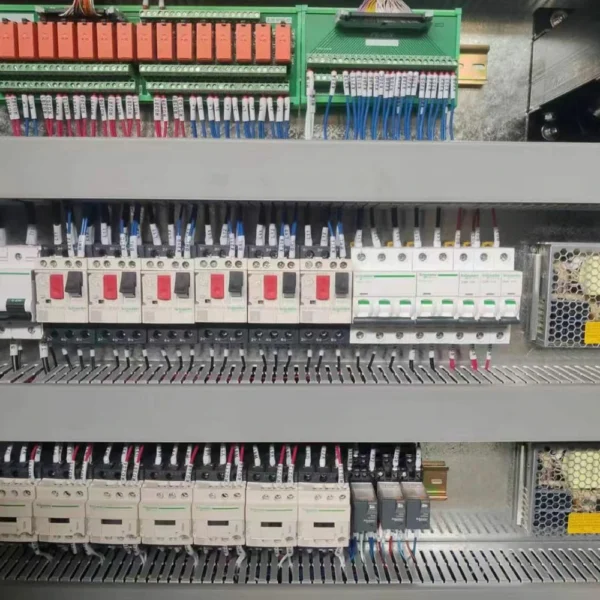

- Electrical cabinet heat exchanger for thermal stability in continuous operation
- Leveling pads, anchor bolts, and complete tool kit included
Optional Configuration for VMC1265 Vertical Machining Center
- Spindle oil cooler for thermal stability during long high-speed runs
- CTS (Coolant Through Spindle) 20/30 bar for deep-hole drilling and chip evacuation
- Renishaw TS27R tool probe + OMP60 workpiece probe for in-process verification
- 4th axis rotary table (manual or CNC) for multi-face machining without re-fixturing
- 90° milling head or auto/manual angle head for complex contours and undercuts
- Chain-type ATC (30/40 tools) for expanded tooling capacity in high-mix production
- Heidenhain linear scales for closed-loop high-precision applications
- Cabinet air conditioner for hot/humid workshop environments
- Upgraded spindle bearing package for extended high-speed service life
Why Shops Choose the VMC1265 Vertical Machining Center
- 🔹 BT40 Precision at Speed: 12000rpm direct-drive spindle delivers fine surface finish and efficient high-speed milling—ideal for mold cavities and precision components
- 🔹 Stable Mid-Range Capacity: 1200mm X-travel with ±0.006mm positioning holds tight tolerances across the full table, balancing footprint and capability
- 🔹 Rigid Cast Construction: Stress-relieved cast base and column minimize vibration and thermal drift, ensuring consistent accuracy shift after shift
- 🔹 Flexible for High-Mix Production: 24-tool ATC + optional probing + 4th axis support lets you run diverse part families without constant retooling
- 🔹 Ready for Global Deployment: Multi-controller options, CE-compliant electricals, and Schneider components support international shop standards
Applications of VMC1265 Vertical Machining Center
The VMC1265 vertical machining center excels in medium-sized part machining where precision, stability, and flexibility drive productivity:
- ✅ Mold & die manufacturing: injection molds, die-casting inserts, stamping dies, plastic mold cavities
- ✅ Automotive components: transmission housings, sensor mounts, bracket assemblies, EV motor components
- ✅ Industrial machinery: pump casings, valve bodies, gearbox components, custom fixtures
- ✅ Precision metal parts: aerospace brackets, medical device components, instrumentation housings
- ✅ General precision machining: flanges, plates, frames, and custom structural components
For teams optimizing machining processes for precision components, industry standards and best practices from
ISO (International Organization for Standardization) provide valuable guidance on process validation and quality management in metal cutting.
If your project involves mold manufacturing, learn more about our
CNC solutions for mold making, or explore how we support
automotive component machining across diverse production scales.
Custom Solutions & WhatsApp Support
Need a customized VMC1265 vertical machining center configuration, precision upgrade, or a detailed quotation?
Our engineering team can help you spec the right vertical machining setup for your mold, automotive, or precision component production line.
