⚙️ BT50 6000rpm High-Torque Spindle
🎯 ±0.008mm Positioning Accuracy
📦 1200kg Pallet Load Capacity

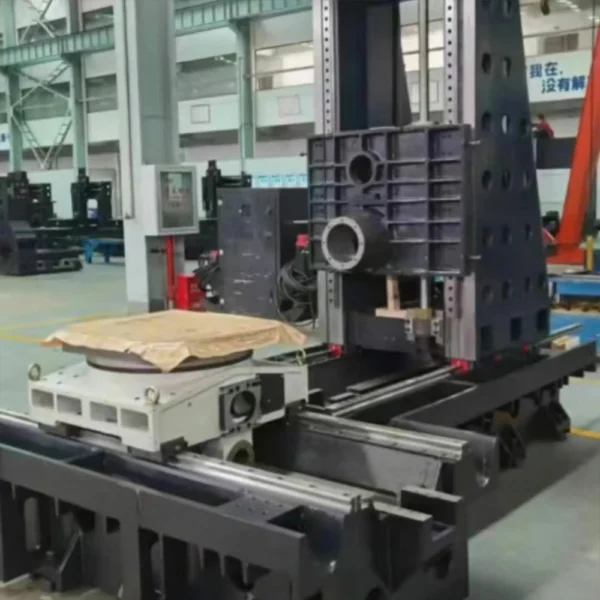

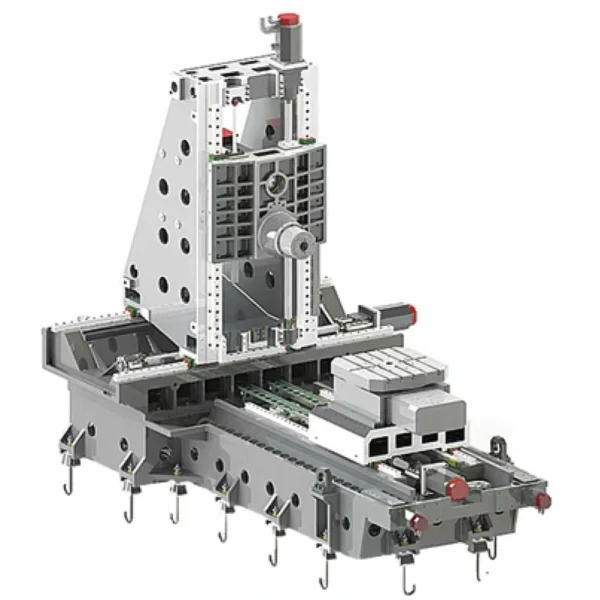

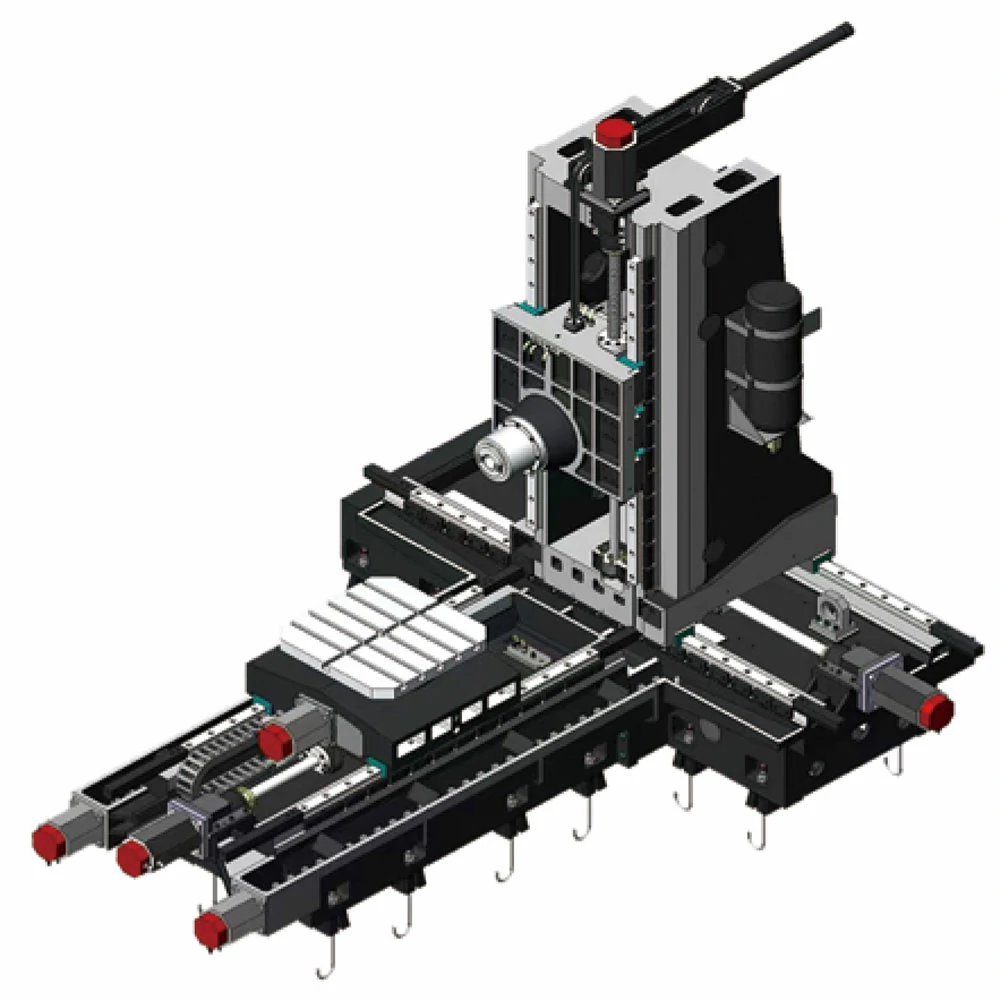

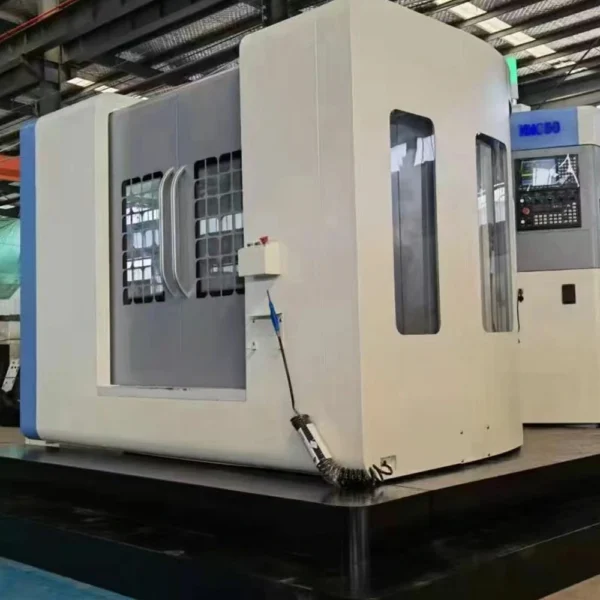

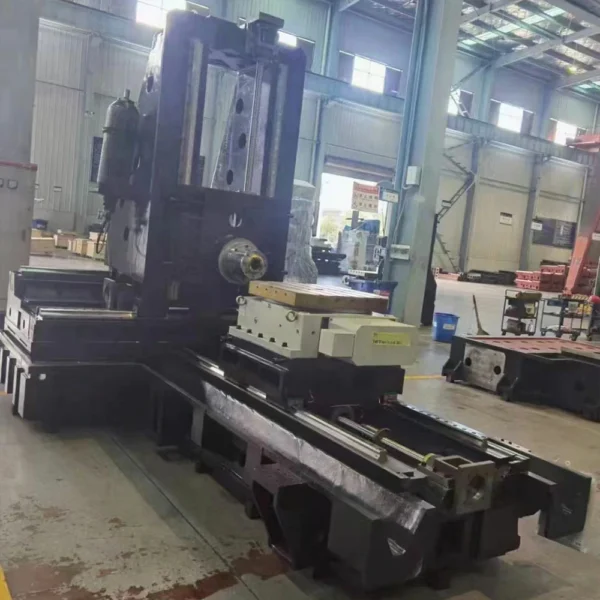

When your parts need machining on multiple faces without re-fixturing, the HMC630 horizontal machining center delivers. Built around a rigid T-bed structure, forward-hanging box layout, and high-rigidity roller guideways on all three axes, this HMC630 horizontal machining center ensures exceptional stability for both roughing and finishing operations.
Whether you’re producing engine blocks, transmission housings, or complex mold cavities, the HMC630 horizontal machining center adapts—with a 630×630mm pallet, 1200kg load capacity, and 24-tool disc ATC that keeps high-mix production moving efficiently.
Comparing horizontal machining solutions? Browse our full CNC machines lineup or explore our horizontal machining center series to match specs with your production workflow.
What Sets the HMC630 Apart
Horizontal spindle + rotary pallet enables 4-side machining in one setup—cutting handling time and boosting throughput
Forward-hanging layout + roller guideways minimize vibration during heavy roughing and fine finishing alike
C3-grade ballscrews + direct-drive transmission deliver ±0.008mm positioning across full travel
24-tool disc ATC switches tools in seconds, keeping high-mix batch production moving without interruption
HMC630 Technical Specifications
| Worktable Size | 630 × 630 mm |
|---|---|
| Max Pallet Load | 1200 kg |
| X/Y/Z Axis Travel | 1200 / 800 / 1000 mm |
| Spindle Taper / Speed | BT50 • 6000 rpm |
| Spindle Motor Power | 18.5 kW |
| Spindle Center to Table | 130–930 mm |
| Ballscrew Spec (X/Y/Z) | R5010-C3 (direct drive) |
| Linear Guideway / Block Qty | 55 Roller/2 + 45 Roller/2 |
| Rapid Traverse (X/Y/Z) | 20 / 20 / 20 m/min |
| Table Indexing Precision | 1° or 0.001° |
| Tool Magazine | 24 tools, disc-type ATC |
| Positioning / Repeat Accuracy | ±0.008 mm / ±0.005 mm |
| Machine Weight | 13000 kg |
⚠️ Specifications subject to change. Photos may include optional equipment.
What’s Standard with Your HMC630
Every HMC630 horizontal machining center ships production-ready—core capability included, no hidden essentials:
- ✓ Fanuc 0i-MF(5) CNC control (upgrade options available)
- ✓ BT50 spindle, 6000 rpm, 18.5 kW high-torque motor
- ✓ 24-tool disc-type automatic tool changer
- ✓ HIWIN roller-type linear guideways on X/Y/Z axes
- ✓ HIWIN C3-class ballscrews with direct-drive transmission
- ✓ Chain-type automatic chip conveyor & collection system
- ✓ Nitrogen balance system for Z-axis stability
- ✓ Full enclosure with telescopic rail covers + safety door
- ✓ Auto-lube system + coolant with air/water gun
- ✓ Cabinet heat exchanger + work lamp + tri-color indicator
- ✓ MPG handwheel, leveling hardware, and documentation
Where the HMC630 Delivers Maximum Value
Shops invest in the HMC630 horizontal machining center when part geometry, tolerance requirements, or production volume demand multi-face machining efficiency—without compromising on precision or repeatability.
Engine blocks • Transmission housings • Steering knuckles • EV motor components
Injection mold cavities • Die-casting inserts • Stamping die cores • Complex mold bases
Pump/valve bodies • Reducer casings • Gearbox components • Custom fixtures
Flanges • End covers • Brackets • Connector seats • High-volume small batches
For teams validating multi-face machining processes, quality frameworks from
ISO (International Organization for Standardization) provide practical guidance on process control and measurement uncertainty in horizontal milling operations.
