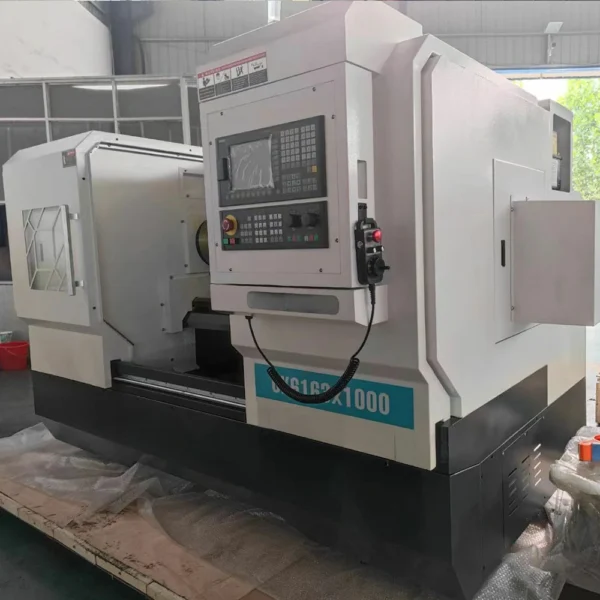

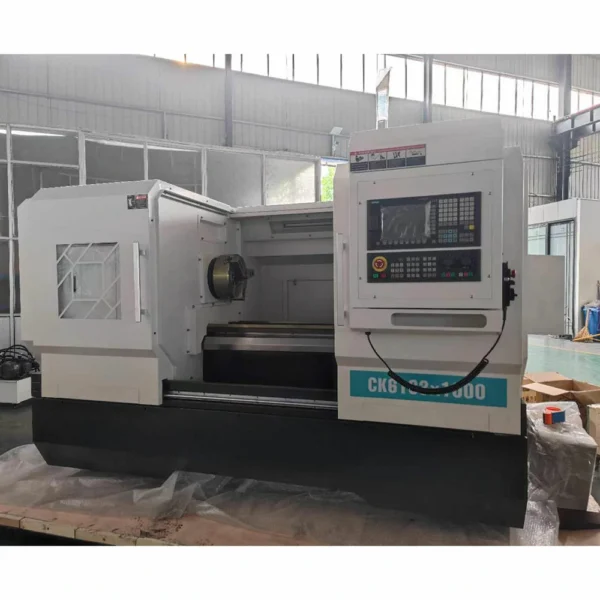

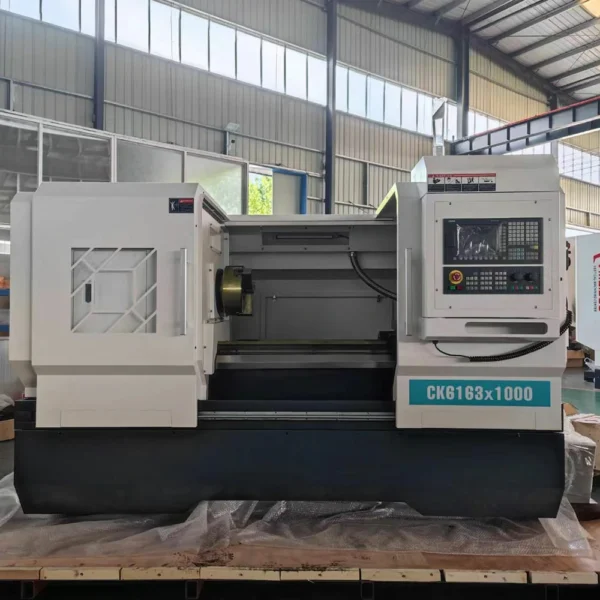

The CK6163 CNC lathe is a high-precision flat-bed turning center designed for efficient metal turning, drilling, milling, tapping, and boring in a single setup.
Featuring high-speed linear guide rails, a rigid cast bed, and semi-closed loop control on X/Z axes, this CK6163 CNC lathe delivers stable performance for medium-volume production of shafts, flanges, and housing components.
With a Φ630mm swing capacity and Fanuc 0i-TF control, the CK6163 CNC lathe handles complex rotational parts with ±0.005mm repeatability—ideal for automotive, general machinery, and precision metalworking shops.
If you’re comparing turning solutions across different lathe types, browse our full range of
CNC machines or explore our dedicated
flat-bed CNC lathe series to find the right fit for your production goals.
Key Features of CK6163 CNC Lathe
- High-speed linear guide rails on X/Z axes for smooth, precise motion and long service life
- 4-position electric tool turret for fast tool changes and multi-operation efficiency
- Rigid cast bed design with semi-closed loop control ensures stable cutting under varying loads
- Supports turning, drilling, milling, tapping, and boring in a single setup—reducing handling time
- Φ630mm swing capacity with Φ80mm bar through-hole, versatile for medium-sized rotational parts
- Fanuc 0i-TF(5) control system with rigid tapping and user-friendly interface
Main Components of CK6163 CNC Lathe

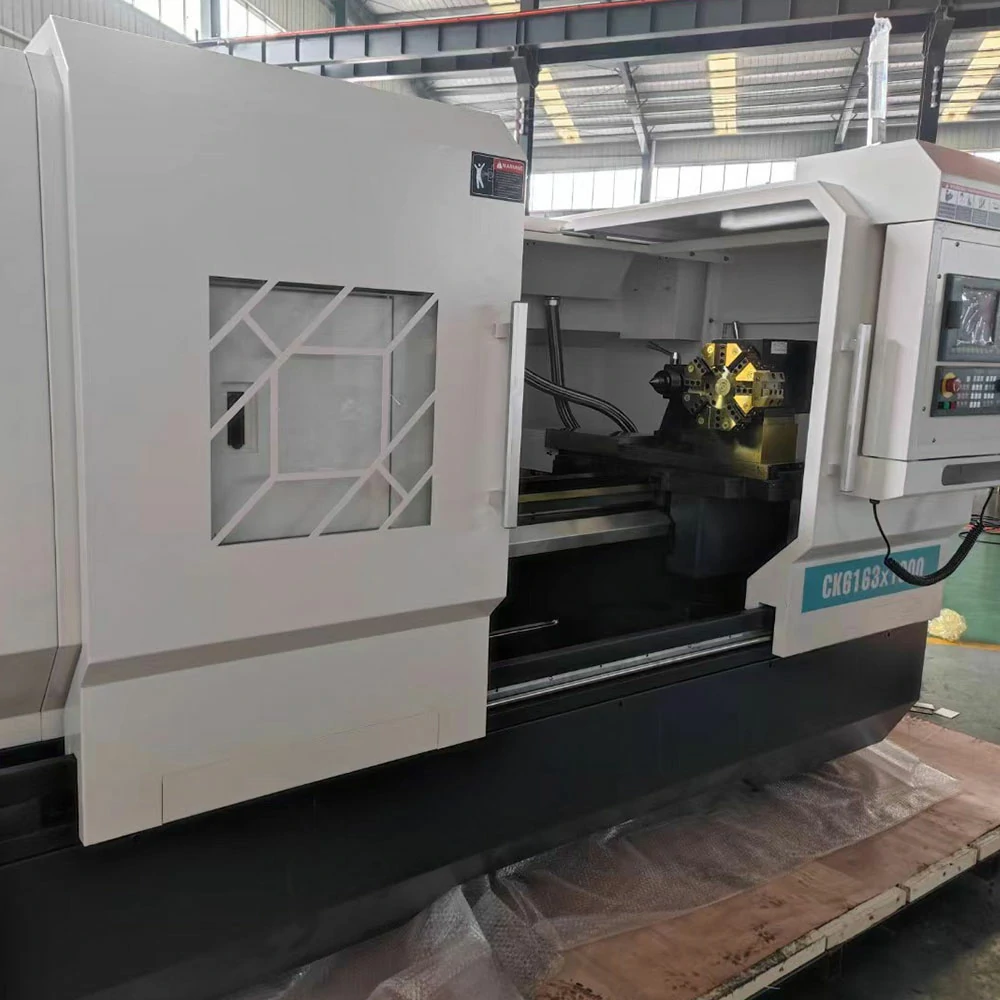

1. Bed & Guide Rails
Built on a stress-relieved cast bed, the CK6163 uses high-precision linear guideways for smooth motion and minimal maintenance. Options include sliding, rolling, or hydrostatic rails depending on application needs.

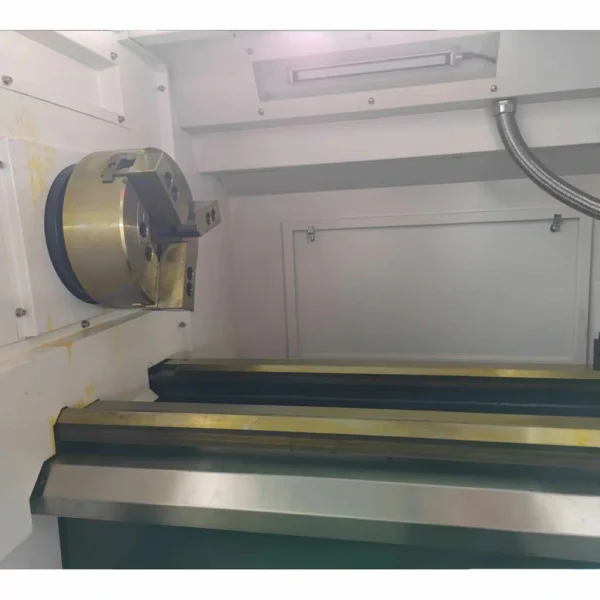

2. Hydraulic Chuck System
Standard 3-jaw hydraulic chuck ensures fast, repeatable clamping. Upgrade options include 4-jaw independent, pneumatic, or hollow hydraulic chucks for specialized workholding.

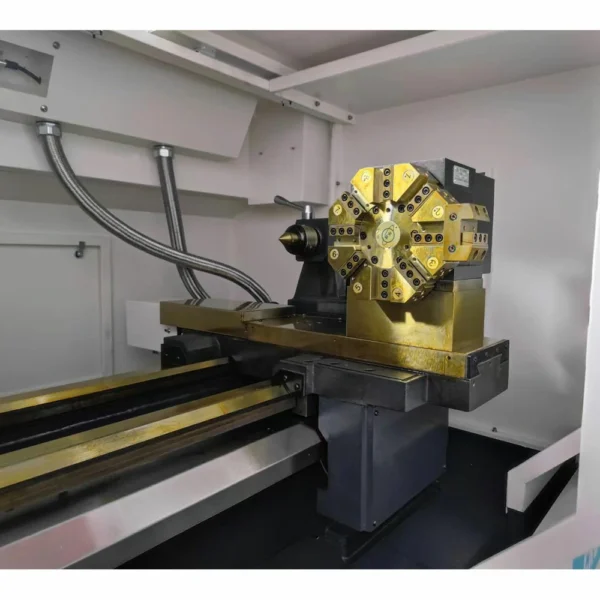

3. Electric Tool Turret
4-position electric turret supports radial and axial tools, drills, and boring bars. Optional 6-position or servo-driven turrets enable more complex multi-tool operations.
Technical Specifications of CK6163 CNC Lathe
| Feature | Unit | CK6163 |
|---|---|---|
| Max Swing over Bed | mm | Φ630 |
| Max Swing over Cross Slide | mm | Φ420 |
| Standard Machining Length | mm | 500/1000/1500/2000/3000 |
| Max Bar Diameter through Spindle | mm | Φ80 |
| X-axis Travel | mm | 295 |
| Z-axis Travel | mm | 500/1000/1500/2000/3000 |
| Spindle Bore Diameter | mm | Φ82 |
| Spindle Speed | r/min | 45-180 / 180-750 / 600-1600 |
| Tailstock Travel | mm | 150 |
| Machine Weight | kg | 2600/2700/2900/3400/4000 |
⚠️ Note: Specifications are subject to change without prior notice. Machines may be shown with optional equipment.
Standard Configuration of CK6163 CNC Lathe
- Fanuc 0i-TF(5) CNC control system with rigid tapping
- 3-jaw hydraulic chuck (Φ250mm) for reliable workholding
- 4-position electric tool turret for multi-operation efficiency
- Work lamp + tri-color status indicator for shop-floor visibility
- Coolant system with chip tray for clean operation
- Centralized auto-lubrication system for low maintenance
- Full enclosure with safety interlocks (CE compliant)
- Leveling bolts, tool kit, and user manual included
Optional Configuration for CK6163 CNC Lathe
- 4-jaw independent chuck (Φ250mm) for irregular workpieces
- Pneumatic or hollow hydraulic chuck (200mm) for automation integration
- 6-position electric turret for expanded tooling capacity
- Bar feeder compatibility for lights-out production on long shafts
- Part catcher + oil mist filter for automated unloading and clean air
- Renishaw tool probe for automatic offset compensation
- Cabinet air conditioner for hot/humid workshop environments
Why Shops Choose the CK6163 CNC Lathe
- 🔹 Reliable Flat-Bed Design: Proven cast-bed structure with linear guideways offers excellent damping and easy maintenance—ideal for shops prioritizing uptime over ultra-high speed
- 🔹 Flexible for Medium Parts: Φ630mm swing + Φ80mm bar capacity handles a wide range of shafts, flanges, and housings without over-investing in larger swing lathes
- 🔹 Fanuc Control + Semi-Closed Loop: Trusted 0i-TF platform with responsive axis control delivers consistent ±0.005mm repeatability across production runs
- 🔹 Ready for Automation: Compatible with bar feeders, part catchers, and probing systems—scale from manual loading to semi-automated cells as your needs grow
- 🔹 CE Certified + Schneider Electrics: Meets international safety standards with reliable electrical components for global deployment
Applications of CK6163 CNC Lathe
The CK6163 CNC lathe excels in medium-volume production of rotational and prismatic parts where precision, reliability, and cost-effectiveness matter most:
- ✅ Precision shafts: stepped shafts, lead screws, transmission axles, pump shafts
- ✅ Flanges & discs: pipe flanges, bearing seats, pulleys, coupling hubs
- ✅ Housing components: valve bodies, pump casings, gearbox housings, end covers
- ✅ Automotive parts: brake hubs, sensor mounts, CV joint components, EV motor shafts
- ✅ General machinery: brackets, connectors, threaded inserts, custom fasteners
For teams optimizing turning processes, industry resources like
SME (Society of Manufacturing Engineers) offer practical guides on lathe selection, tooling strategies, and process validation.
If your project involves automotive rotational components, learn more about our
CNC solutions for the automotive industry, or explore how we support
general machining applications across diverse sectors.
Custom Solutions & WhatsApp Support
Need a customized CK6163 CNC lathe configuration, automation integration, or a detailed quotation?
Our engineering team can help you spec the right flat-bed lathe setup for your shaft, flange, or housing production line.
