⚙️ Φ72mm Bar Capacity
🎯 ±0.005mm Repeatability
🔧 12-Station Hydraulic Turret

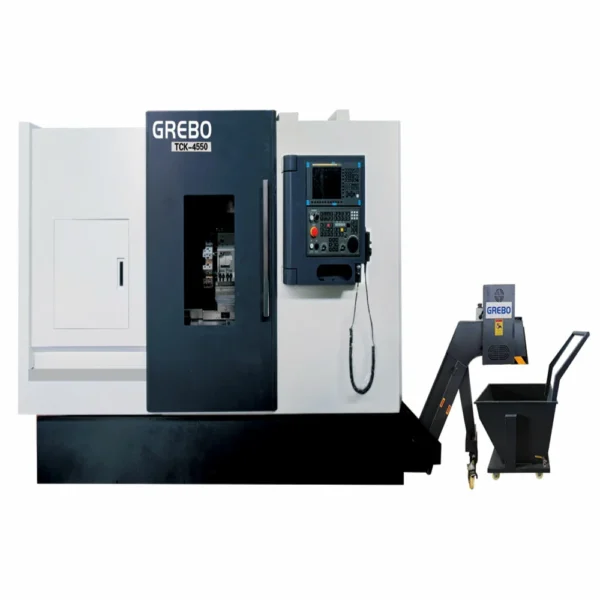

When your shop needs reliable turning for shafts, flanges, and automotive components, the TCK4550 slant bed CNC lathe delivers consistent results. Built around a rigid 30°/45° inclined bed, HIWIN linear guideways, and C3-class precision ballscrews, this TCK4550 slant bed CNC lathe ensures smooth chip evacuation and stable accuracy across its full 580mm machining length.
Whether you’re running prototype batches or high-volume production, the TCK4550 slant bed CNC lathe adapts—with a Φ500mm swing, Φ72mm bar through-hole, and 12-station servo hydraulic turret that keeps complex rotational parts moving efficiently.
Comparing turning solutions? Browse our full CNC machines lineup or explore our slant bed CNC lathe series to match specs with your production workflow.
What Makes the TCK4550 Stand Out

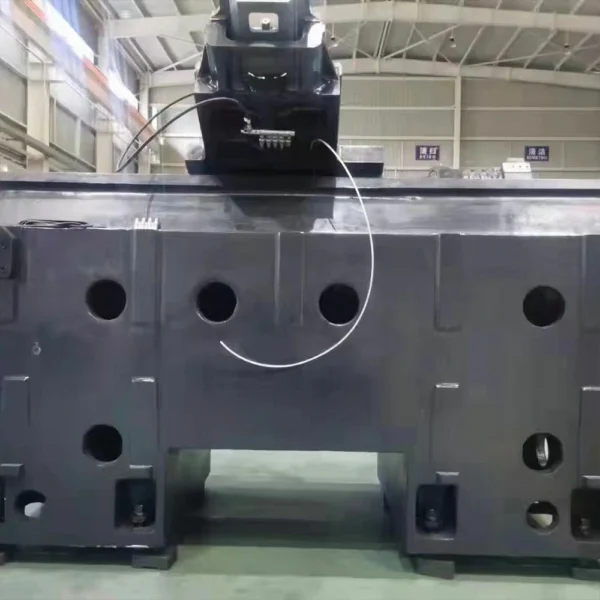

30°/45° slant bed lets chips fall away naturally—reducing recutting and protecting surface finish

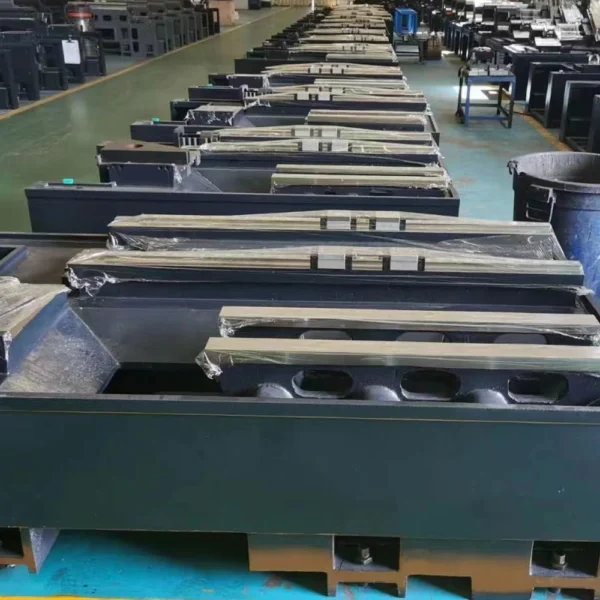

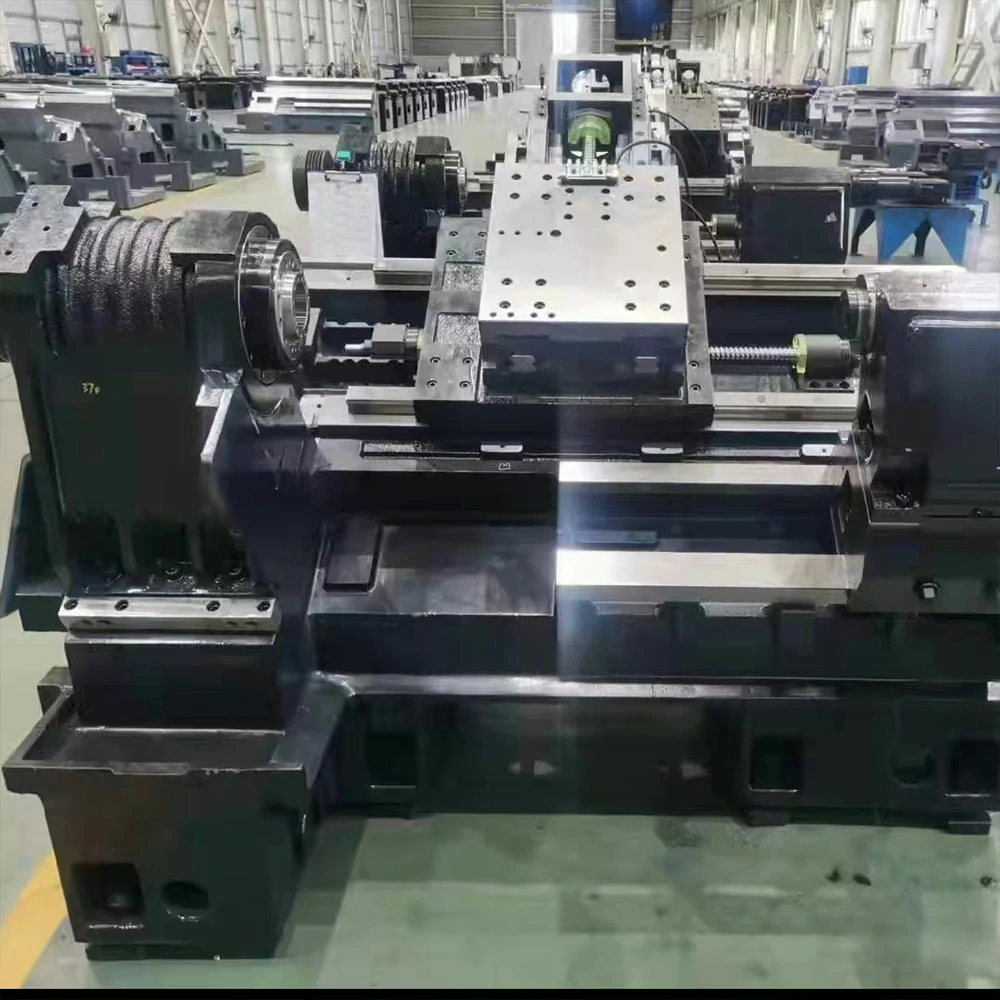

Stress-relieved cast base + HIWIN guideways minimize vibration during heavy turning operations

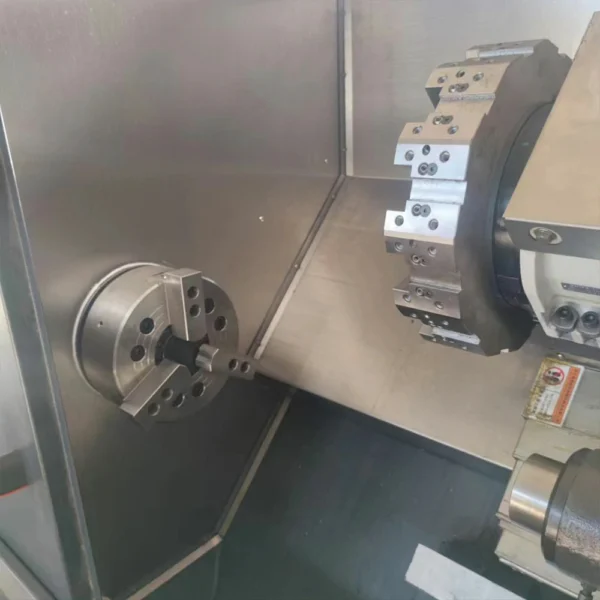

12-station servo hydraulic turret switches tools reliably, keeping high-mix production moving
Φ72mm through-hole + optional bar feeder support enables lights-out production on long shafts
TCK4550 Technical Specifications
| Max. Swing over Bed | Φ500 mm |
|---|---|
| Max. Machining Diameter | Φ480 mm |
| Max. Machining Length | 580 mm |
| Spindle Nose / Chuck | A2-8 / 10″ hydraulic |
| Spindle Speed / Power | 2600 rpm • 11/15 kW |
| Spindle Bore / Bar Capacity | Φ87 mm • Φ72 mm |
| X/Z Axis Travel | 250 / 620 mm |
| Linear Guideway (X/Z) | 45/45 mm (HIWIN) |
| Positioning / Repeat Accuracy | ±0.008 mm / ±0.005 mm |
| Tailstock (Quill / Travel / Taper) | Φ100 mm / 670 mm / MT5 |
| Machine Footprint (L×W×H) | 4800 × 1500 × 1700 mm |
| Net Weight | 4300 kg |
⚠️ Specifications subject to change. Photos may include optional equipment.
What’s Standard with Your TCK4550
Every TCK4550 slant bed CNC lathe ships production-ready—core capability included, no hidden essentials:
- ✓ Fanuc 0i-TF CNC control (upgrade options available)
- ✓ Fanuc servo drives on X/Z axes for responsive motion
- ✓ Taiwan hollow hydraulic 3-jaw chuck (10″)
- ✓ Hydraulic tailstock with MT5 taper for long-part support
- ✓ 12-station servo hydraulic turret for fast tool changes
- ✓ Chain-type automatic chip conveyor for clean operation
- ✓ HIWIN ball leadscrews + linear guideways (X/Z)
- ✓ Manual Pulse Generator (MPG) + USB data interface
- ✓ Coolant system with air/water gun for flexible cleaning
- ✓ Centralized auto-lube + cabinet heat exchanger
- ✓ Full enclosure, safety interlocks, tri-color indicator
- ✓ Leveling hardware, tool kit, and documentation included
Where the TCK4550 Delivers Value
Shops choose the TCK4550 slant bed CNC lathe when they need one machine that handles diverse rotational parts—without constant retooling or sacrificing precision.
Transmission axles • Lead screws • Stepped shafts • Pump shafts
Pipe flanges • Bearing seats • Valve bodies • Pump casings
Steering knuckles • Brake discs • EV motor shafts • Sensor mounts
Stainless/alloy steel • Aluminum/copper • Engineering plastics
For teams optimizing turning processes, quality frameworks from
ISO (International Organization for Standardization) provide practical guidance on process validation and measurement uncertainty in precision metal cutting.
Working on automotive shafts? See our CNC solutions for automotive manufacturing, or explore how we support general precision turning applications across industries.
Ready to Turn Precision Parts Faster?
Whether you need help selecting turret options, planning bar-feeder integration, or getting a detailed quote for your TCK4550 slant bed CNC lathe—our engineers are here to help, no obligation.
💬 Chat With an Engineer on WhatsApp
📧 Request a Detailed Quotation
