When your parts demand complex 3D contouring, undercuts, and tight positional tolerances, standard 3-axis setups just won’t cut it. That’s where the GREBO FMC series 5-axis machining center models (FMC170, FMC320, and FMC650) come into play.

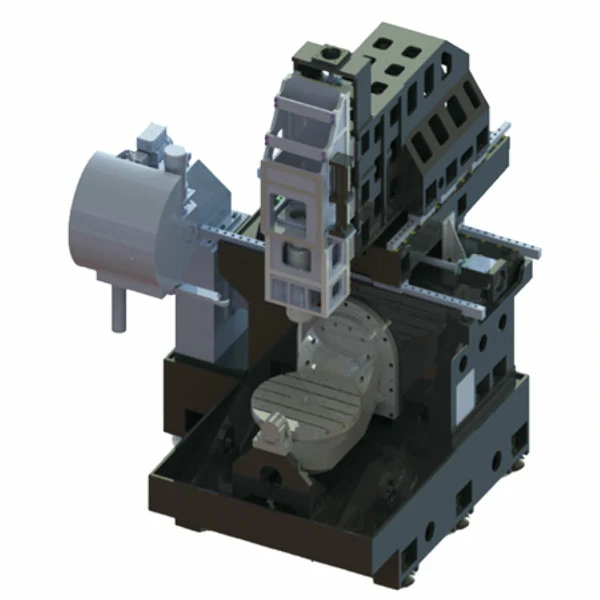

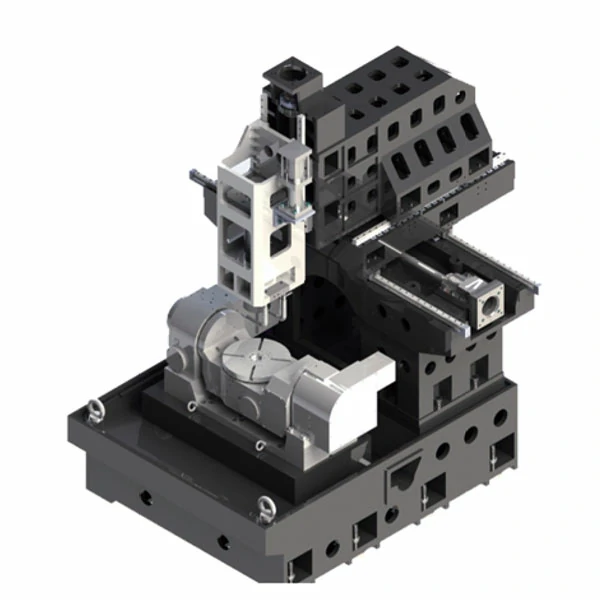

Instead of just bolting a rotary table onto a standard mill, we engineered the FMC series around a high-rigidity base and integrated Taiwan direct-driven rotary tables. Investing in a high-quality 5-axis machining center is the most effective way to eliminate secondary setups and drastically reduce cycle times for complex geometries.
Whether you need the compact high-speed FMC170 for small medical parts, or the heavy-duty FMC650 with 45mm roller guideways for large aerospace components, our
5-axis machining center series is built to handle your toughest contouring challenges in a single clamping.
Why Choose the GREBO FMC 5-Axis Machining Center Series?
- True 5-Axis Kinematics: Equipped with Taiwan direct-driven rotary tables (B/C axis ±110°/360°) for zero-backlash, high-dynamic contouring.

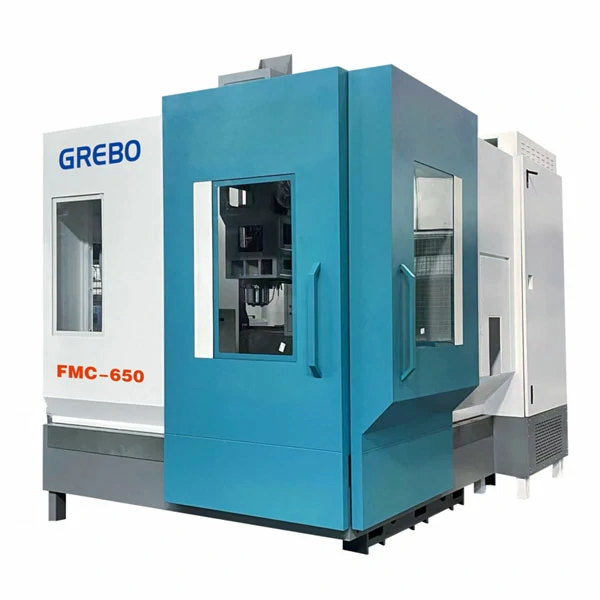

- Heavy-Duty Rigidity: The FMC650 features 45mm roller linear guideways, absorbing massive cutting forces during heavy roughing of titanium or steel.
- High-Speed Spindle Options: From the 20,000 rpm BT30 spindle on the FMC170 for fine finishing, to the 15,000 rpm BBT40 spindle on the FMC650 for balanced milling.
- Superior Chip Evacuation: Dual chip removal system (Chain-type + Spiral-type) prevents chip buildup in deep-cavity 5-axis machining.
- Premium Control Systems: Standard Siemens 840D SL, with Fanuc, Mitsubishi, and Syntec available to match your shop’s programming ecosystem.
- Thermal Stability: Standard spindle oil cooler and cabinet air conditioner ensure micron-level accuracy during long, unattended runs.
- Full Enclosure & Safety: Fully closed covers with safety interlocks, protecting operators while containing coolant and chips.
Standard Configuration (FMC Series)
- Siemens 840D SL CNC control system
- 12,000 rpm motorized spindle with BT40 taper (Standard for FMC320/650)
- Spindle oil cooler for thermal stability
- 24-tool disc-type automatic tool changer (ATC)
- Manual pulse generator (MPG / Handwheel)
- Taiwan direct-driven rotary table (5-axis)
- Taiwan linear guideways (Ball/ Roller type depending on model)
- Dual chip conveyor: Chain-type + Spiral-type
- Air conditioner for electrical cabinet
- Air gun + water gun for machine cleaning
- Full closed protective covers
- Working lamp and three-color alarm lamp
Optional Configurations & Upgrades
- CNC Controller: Fanuc 0i-MF, Siemens 828D, Mitsubishi M80A/B, or Syntec 22MA-5
- Tool Magazine: Upgrade to 32-tool capacity
- Coolant System: 30 bar Coolant Through Spindle (CTS) for deep hole drilling
- Measurement Systems: 3-axis linear scales (glass rulers) for full closed-loop precision
- Renishaw Probes: OMP60 infrared workpiece probe & TS-27R infrared tool setter
- Spindle Upgrades: Higher speed or higher torque spindle options
Technical Specifications: FMC170 vs FMC320 vs FMC650
| Parameter | Unit | FMC170 | FMC320 | FMC650 |
|---|---|---|---|---|
| Worktable Size | mm | Ø200 | Ø400 | Ø650 |
| X / Y / Z Axis Travel | mm | 600 / 200 / 300 | 800 / 360 / 400 | 820 / 520 / 500 |
| B / C Axis Travel | – | – | ±110° / 360° | ±110° / 360° |
| Spindle Nose to Worktable | mm | 80 – 380 | 150 – 550 | 150 – 650 |
| Spindle Center to Column | mm | 140 | 183.5 | 187 |
| Spindle Taper | – | BT30 | BT40 | BBT40 |
| Spindle Speed | rpm | 20,000 | 12,000 | 15,000 |
| Main Motor Power | kW | 3.7 / 5.5 | 7.5 | 11 |
| Tool Capacity | – | 8T (Disc) | 24T (Disc) | 24T (Disc) |
| X/Y/Z Linear Guideway | – | Ball 30 | Roller 35 | Roller 45 |
| Max. Loading Capacity | kg | 50 | 200 (H) / 160 (T) | 300 |
| Rapid Traverse (X/Y/Z) | m/min | 30 / 30 / 30 | 36 / 36 / 36 | 24 / 24 / 24 |
⚠️ Note: Specifications are subject to change without prior notice. Machines may be shown with optional equipment.
Real-World Applications of FMC 5-Axis Centers
The GREBO FMC series isn’t just about spinning 5 axes at once; it’s about solving real manufacturing bottlenecks. By upgrading to a modern 5-axis machining center, shops can drastically reduce lead times for complex geometries. These machines are transforming production floors in:
- ✅ Aerospace & Defense: Machining monolithic structural frames, blisks, and turbine blades from solid titanium or Inconel blocks.
- ✅ Medical Implants: The FMC170’s 20,000 rpm spindle is perfect for fine finishing orthopedic knee and joint implants from cobalt-chrome alloys.
- ✅ Complex Mold & Die: Deep-cavity 3D mold cores and impellers where long-reach tools would normally chatter on a 3-axis VMC.
- ✅ Automotive Prototyping: Rapid iteration of complex cylinder heads, valve bodies, and custom suspension components without dedicated fixtures.
For shops looking to optimize their multi-axis strategies, industry organizations like
AMT – The Association For Manufacturing Technology provide excellent insights into 5-axis workflow integration and automation.
If your current production involves complex geometries that require multiple setups, it might be time to upgrade. Explore our
5-axis machining center lineup, or see how we apply these machines in
precision mold machining solutions.
Need a Custom 5-Axis Solution?
Every shop’s workflow is different. Whether you need the high-speed FMC170 for micro-parts, or the heavy-roller FMC650 for aggressive steel cutting, our engineering team will help you configure the exact FMC series machine for your application. Contact us today to configure your ideal 5-axis machining center and get a factory-direct quotation.
