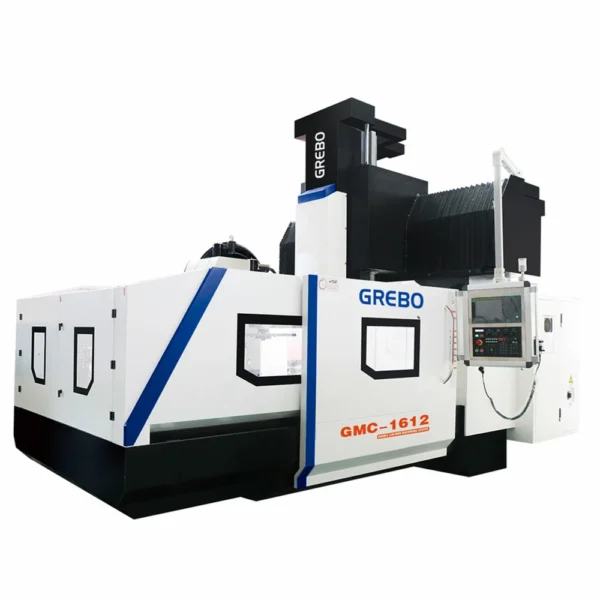

The GMC1612 gantry machining center is a high-precision, high-efficiency CNC milling solution designed for large-scale industrial machining.
Featuring a rigid double-column gantry structure, imported HIWIN linear guideways, and C3-class precision ballscrews, this GMC1612 gantry machining center delivers exceptional stability for heavy-duty cutting operations.
With 1600mm X-axis travel and 2-ton worktable capacity, the GMC1612 gantry machining center completes milling, drilling, tapping, and boring of large molds, automotive components, and aerospace structural parts in a single setup.
If you’re comparing options across different machining processes, browse our full range of
CNC machines to find the right fit for your production goals.
Key Features of GMC1612 Gantry Machining Center

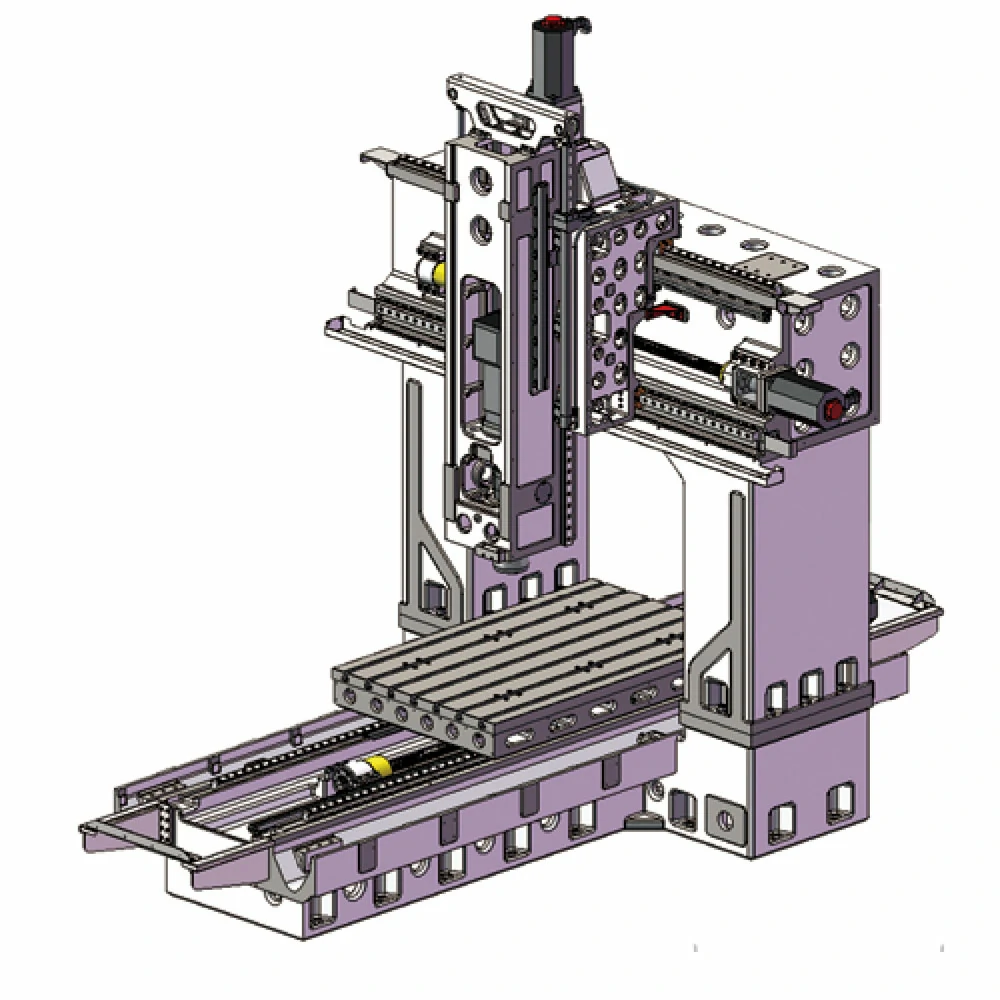

- Double-column gantry frame for superior rigidity and vibration damping
- 1600mm X-axis travel with 2-ton worktable load capacity
- Imported HIWIN linear roller guides on X/Y/Z axes for smooth, precise motion
- C3-class precision ballscrews with direct-drive transmission
- BT50 spindle taper, 8000 rpm belt-driven spindle (15/18.5 kW)
- Mitsubishi M80A CNC control system (Fanuc/Siemens/Syntec optional)

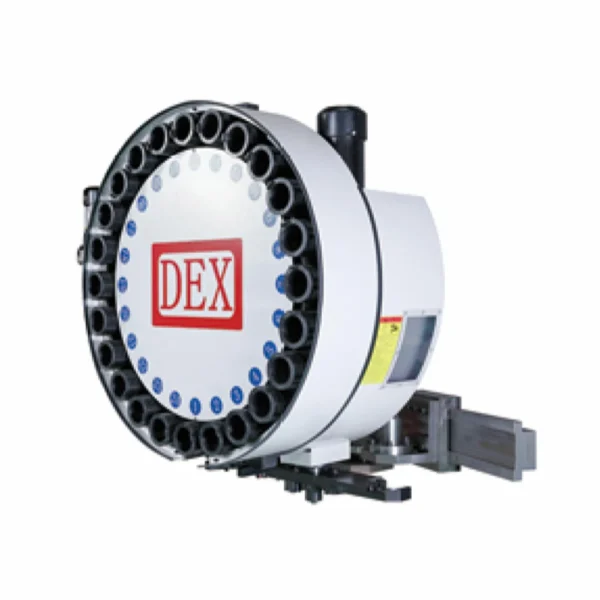

- 24-tool disc-type automatic tool changer (ATC) for fast, reliable tool switching
- Dual chip removal system: screw-type ×2 + chain-type conveyor ×1
- Nitrogen balance cylinder for Z-axis stability
- Full enclosure with metal guideway covers and safety door
- Centralized automatic lubrication and coolant system
- Work light, three-color indicator, and manual pulse generator (MPG)
Standard Configuration of GMC1612 Gantry Machining Center
- Mitsubishi M80A CNC control system
- Belt-type spindle, 6000/8000 rpm, BT50 taper
- 24-tool disc-type automatic tool changer (ATC)
- Screw-type chip conveyor ×2
- Chain-type chip conveyor & chip bucket ×1
- Nitrogen balance cylinder for Z-axis
- Heat exchanger for electrical cabinet
- Air gun + water gun for chip cleaning
- Automatic lubricating system
- Taiwan HIWIN 2-axis linear guideway (X/Y)
- Taiwan HIWIN ball leadscrew (X/Y/Z)
- Levelling pads, nuts and anchor bolts
- Tools and tool box included
Optional Configuration for GMC1612 Gantry Machining Center
- CNC controller upgrade: Fanuc / Siemens / Syntec
- Spindle oil cooler for thermal stability
- CTS – Coolant Through Spindle (center coolant)
- Renishaw tool probe TS27R for automatic tool setting
- Renishaw workpiece probe OMP60 for in-process measurement
- ZF/BF gearbox for high-torque heavy cutting
- Gear head or manual/auto angle head for multi-angle machining
- Chain-type ATC (higher capacity)
- Heidenhain linear scales for closed-loop precision
- Air conditioner for electrical cabinet
- 4th axis rotary table + tailstock + hydraulic station
- 5th axis rotary table + hydraulic station for complex contours
Technical Specifications of GMC1612 Gantry Machining Center
| Feature | GMC1612 Specification |
|---|---|
| X/Y/Z Axis Travel | 1600 / 1300 / 800 mm |
| Spindle Nose to Worktable | 115–915 mm |
| Distance Between Columns | 1300 mm |
| Leadscrew Specification (X/Y/Z) | 5010 / 5010 / 5010 |
| Linear Guideway / Block Qty | 45/45/45 mm; 6/4/6 pcs |
| Worktable Size | 1600 × 1000 mm |
| T-Slot (Qty × Width × Pitch) | 7 × 22 × 140 mm |
| Max. Loading Capacity | 2 Ton |
| Spindle Speed | 8000 rpm (belt-driven) |
| Spindle Motor Power | 15 / 18.5 kW |
| Rapid Traverse Rate (X/Y/Z) | 15 / 15 / 15 m/min |
| Cutting Feed Rate | 1–10000 mm/min |
| Spindle Taper | BT50 |
| Tool Magazine Capacity | 24 tools (disc type) |
| Positioning Accuracy | ±0.008 mm |
| Repeat Positioning Accuracy | ±0.005 mm |
| Machine Weight | 14000 kg |
⚠️ Note: Specifications are subject to change without prior notice. Machines may be shown with optional equipment.
Applications of GMC1612 Gantry Machining Center
The GMC1612 gantry machining center is engineered for high-precision, high-efficiency machining of large and complex workpieces, including:
- ✅ Large mold manufacturing: injection molds, die-casting molds, stamping dies
- ✅ Automotive components: engine blocks, transmission housings, body panel molds
- ✅ Aerospace structural parts: frames, beams, ribs in aluminum/titanium alloys
- ✅ Energy equipment: wind turbine hubs, nuclear valve bodies, hydro guide vanes
- ✅ General machinery: large housings, bases, brackets, and flange components
For teams evaluating machining strategies for precision mold manufacturing, industry resources like
SME (Society of Manufacturing Engineers) offer practical guides on gantry milling best practices and process optimization.
If your project involves similar large-scale mold components, explore our
gantry machining center series or learn how we approach
precision mold CNC solutions across industries.
Custom Solutions & WhatsApp Support
Need a customized GMC1612 gantry machining center configuration, optional accessories, or a detailed quotation?
Our engineering team can help you select the right gantry machining center for your production requirements.
