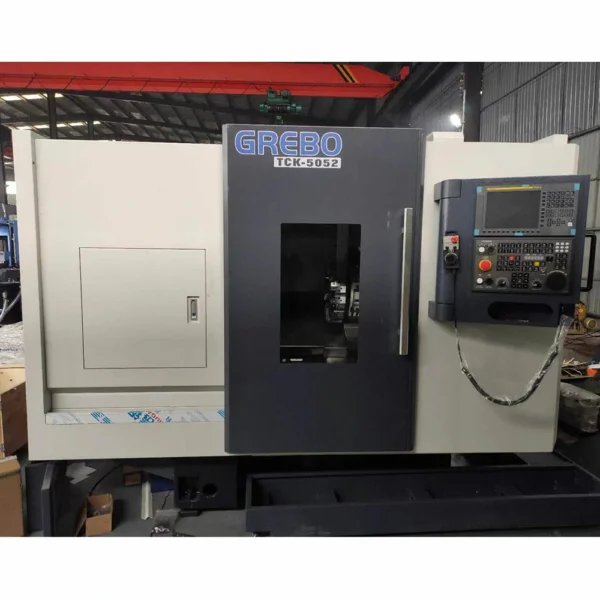

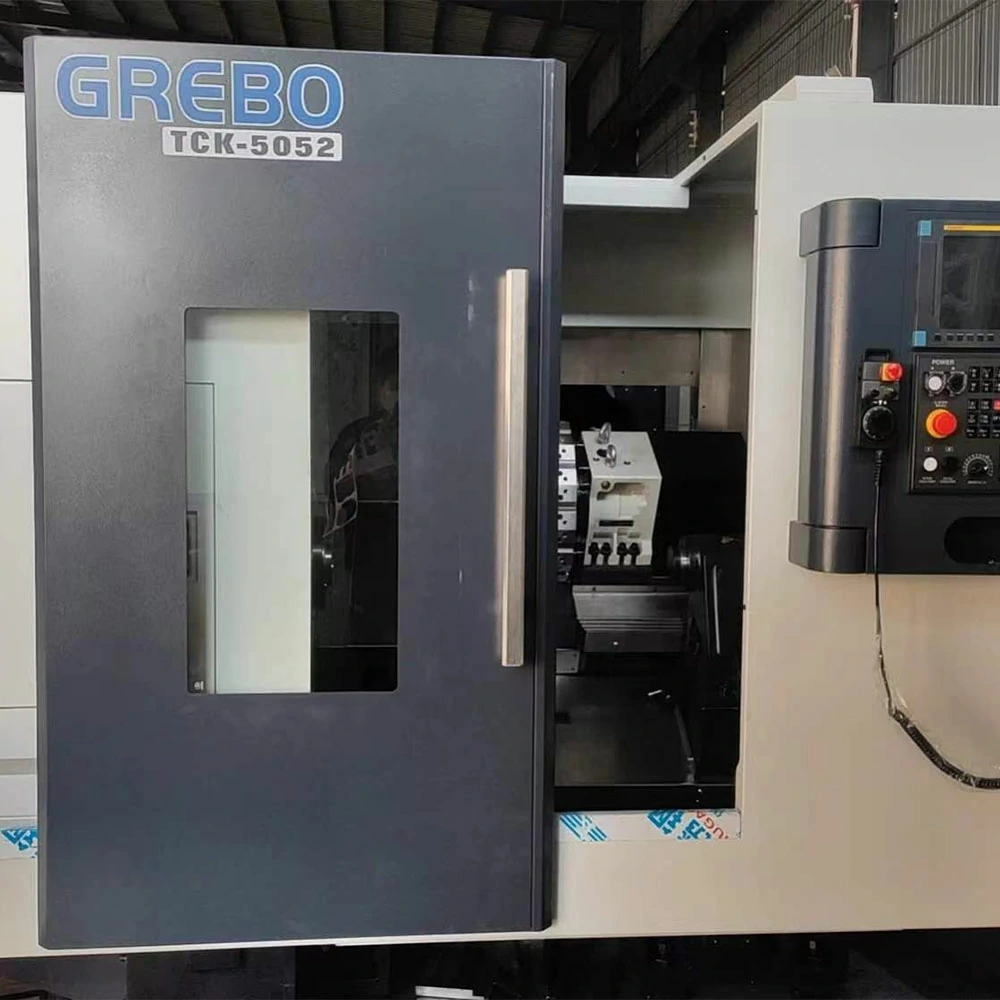

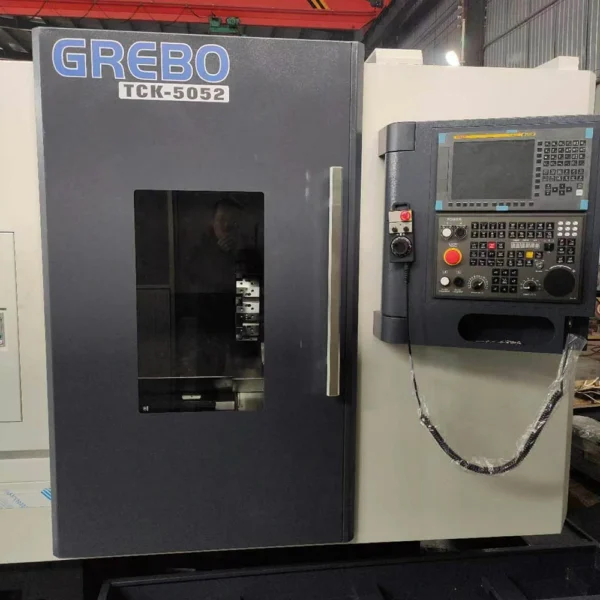

When your shop needs to turn medium-length shafts, flanges, or valve components with speed and consistency, the TCK5052 slant bed CNC lathe delivers. Built around a 30°/45° inclined bed, HIWIN linear guideways, and C3-class precision ballscrews, this TCK5052 slant bed CNC lathe ensures chips fall away cleanly and accuracy holds steady across long production runs.
Whether you’re prototyping a new part family or running high-volume batches, the TCK5052 slant bed CNC lathe adapts—with an 8″ hydraulic chuck, Φ52mm bar capacity, and 12-station servo turret that keeps complex rotational jobs moving without constant retooling.
Comparing turning solutions? Browse our full CNC machines lineup or explore our slant bed CNC lathe series to match specs with your workflow.
Why the TCK5052 Works for Your Shop
4200rpm direct-drive spindle runs smoother than standard 2600rpm lathes—ideal for fine threads and tight-tolerance shaft work
30°/45° inclined layout lets chips fall away naturally, reducing recutting and protecting surface finish on long runs
Servo hydraulic turret switches tools fast and repeatably, supporting OD/ID turning, drilling, and tapping without re-fixturing
Φ52mm through-hole + optional bar feeder support lets you grow from manual loading to lights-out production on the same machine
TCK5052 Technical Specifications
| Max. Swing over Bed | Φ570 mm |
|---|---|
| Max. Machining Diameter | Φ500 mm |
| Max. Machining Length | 520 mm |
| Spindle Nose / Chuck | A2-6 / 8″ hydraulic |
| Spindle Speed / Power | 4200 rpm • 11/15 kW |
| Spindle Bore / Bar Capacity | Φ66 mm • Φ52 mm |
| X/Z Axis Travel | 270 / 610 mm |
| Linear Guideway (X/Z) | 45/45 mm (HIWIN) |
| Positioning / Repeat Accuracy | ±0.008 mm / ±0.005 mm |
| Tailstock (Quill / Travel / Taper) | Φ80 mm / 480 mm / MT5 |
| Machine Footprint (L×W×H) | 4000 × 2050 × 2200 mm |
| Net Weight | 3500 kg |
⚠️ Specifications subject to change. Photos may include optional equipment.
What You Get with Every TCK5052
No hidden essentials—every TCK5052 slant bed CNC lathe ships production-ready:
Where Shops Use the TCK5052
The TCK5052 slant bed CNC lathe excels when you need one machine that handles diverse rotational parts—without sacrificing speed, precision, or uptime.
📦 Flanges & Housings
🚗 Automotive Parts
⚙️ Valve & Pump Components
📏 General Metalworking
For teams optimizing turning processes, quality frameworks from
ISO (International Organization for Standardization) provide practical guidance on process validation in precision metal cutting.
Working on automotive shafts? See our CNC solutions for automotive manufacturing, or explore general precision turning applications.
Ready to Turn Precision Parts Faster?
Whether you need help selecting turret options, planning bar-feeder integration, or getting a detailed quote for your TCK5052 slant bed CNC lathe—our engineers are here to help, no obligation.
