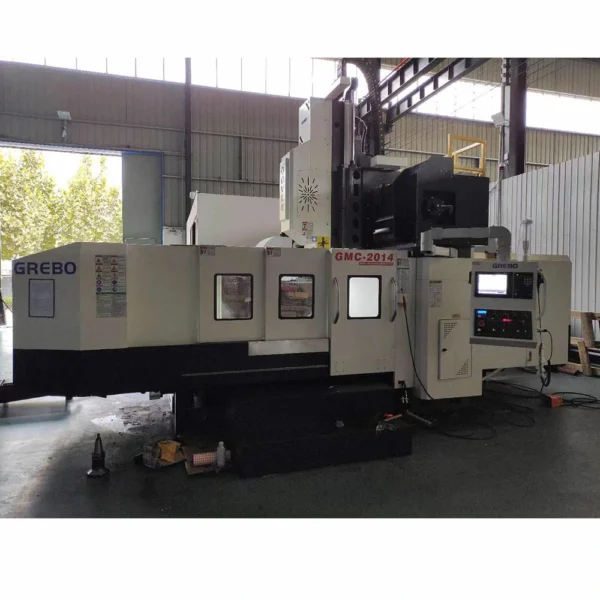

GMC2014 gantry machining center is a high-precision, high-efficiency CNC milling solution engineered for large-scale industrial machining.
Featuring a rigid double-column gantry structure, imported HIWIN linear guideways, and C3-class precision ballscrews, this GMC2014 gantry machining center delivers exceptional stability for heavy-duty cutting operations.
With 2000mm X-axis travel and 3.5-ton worktable capacity, the GMC2014 gantry machining center completes milling, drilling, tapping, and boring of large molds, automotive components, and aerospace structural parts in a single setup.
If you’re comparing options across different machining processes, browse our full range of
CNC machines to find the right fit for your production goals.
Key Features of GMC2014 Gantry Machining Center
- Double-column gantry frame for superior rigidity and vibration damping
- 2000mm X-axis travel with 3.5-ton worktable load capacity
- Imported HIWIN linear roller guides on X/Y/Z axes for smooth, precise motion
- C3-class precision ballscrews with direct-drive transmission

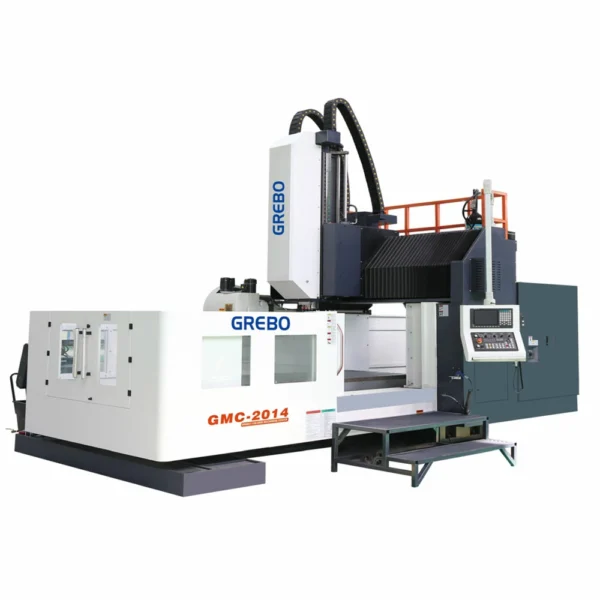

- BT50 spindle taper, 6000 rpm belt-driven spindle (15/18.5 kW)
- Mitsubishi M80A CNC control system (Fanuc/Siemens/Syntec optional)
- 24-tool disc-type automatic tool changer (ATC) for fast, reliable tool switching
- Dual chip removal system: screw-type ×2 + chain-type conveyor ×1
- Nitrogen balance cylinder for Z-axis stability
- Full enclosure with metal guideway covers and safety door
- Centralized automatic lubrication and coolant system
- Work light, three-color indicator, and manual pulse generator (MPG)
Technical Specifications of GMC2014 Gantry Machining Center
| Feature | English | Unit | GMC1614 | GMC2014 | GMC2514 | GMC3014 |
|---|---|---|---|---|---|---|
| X/Y/Z Axis Travel | X/Y/Z axis travel | mm | 1600/1500/800 | 2000/1500/800 | 2500/1500/800 | 3000/1500/800 |
| Spindle Nose to Table | Spindle nose to worktable | mm | 150-950 | 150-950 | 150-950 | 150-950 |
| Distance Between Columns | Distance between two columns | mm | 1500 | 1500 | 1500 | 1500 |
| Leadscrew Spec (X/Y/Z) | Leadscrew specification | – | 5010/5010/5010 | 5010/5010/5010 | 6312/5010/5010 | 6312/5010/5010 |
| Guideway Width / Block Qty | Linear guideway width / Block qty | mm/pcs | 55/55/55; 6/4/4 | 55/55/55; 6/4/4 | 55/55/55; 8/4/4 | 55/55/55; 10/4/4 |
| Worktable Size | Worktable size | mm | 1700×1200 | 2100×1200 | 2600×1200 | 3100×1200 |
| T-Slot (Qty×W×P) | T-slot No.-width×distance | mm | 7-22×170 | 7-22×170 | 7-22×170 | 7-22×170 |
| Max. Loading Capacity | Max. loading capacity | Ton | 2.5 | 3.5 | 4.5 | 5.5 |
| Spindle Speed | Spindle speed | rpm | 6000 (belt) | 6000 (belt) | 6000 (belt) | 6000 (belt) |
| Spindle Motor Power | Spindle motor power | kW | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 |
| Rapid Traverse (X/Y/Z) | Rapid traverse rate | m/min | 15/15/15 | 15/15/15 | 15/15/15 | 15/15/15 |
| Cutting Feed Rate | Cutting feed rate | mm/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Spindle Taper | Spindle taper | – | BT50 | BT50 | BT50 | BT50 |
| Tool Magazine Capacity | Tool magazine capacity | pcs | 24 (disc) | 24 (disc) | 24 (disc) | 24 (disc) |
| Positioning Accuracy | Positioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Repeat Positioning Accuracy | Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Machine Weight | Weight | kg | 14000 | 15500 | 17000 | 18500 |
⚠️ Note: Specifications are subject to change without prior notice. Machines may be shown with optional equipment.
Standard Configuration of GMC2014 Gantry Machining Center
- Mitsubishi M80A CNC control system
- Belt-type spindle, 6000 rpm, BT50 taper
- 24-tool disc-type automatic tool changer (ATC)
- Screw-type chip conveyor ×2
- Chain-type chip conveyor & chip bucket ×1
- Nitrogen balance cylinder for Z-axis
- Heat exchanger for electrical cabinet
- Air gun + water gun for chip cleaning
- Automatic lubricating system
- Taiwan HIWIN 2-axis linear guideway (X/Y)
- Taiwan HIWIN ball leadscrew (X/Y/Z)
- Levelling pads, nuts and anchor bolts
- Tools and tool box included
Core Component Brands
| Component | Brand/Source | Description |
|---|---|---|
| CNC Controller | Siemens / Fanuc / Mitsubishi / Syntec | Optional mainstream controllers |
| ATC System | Taiwan tool-arm type | Reliable and stable tool changing |
| Linear Guideway | Taiwan HIWIN (ball-type) | Precise motion on X/Y/Z axes |
| Ball Leadscrew | Taiwan HIWIN | High-precision transmission |
| Spindle | Taiwan Royal / Volis / Cells | High-speed, high-rigidity spindle |
| Bearings | Japan NSK / Nachi | Imported precision bearings for long life |
| Electrical Components | Schneider (France) | CE-certified safety standard |
| Chip Conveyor | Chain-type system | Efficient automatic chip removal |
Optional Configuration for GMC2014 Gantry Machining Center
- CNC controller upgrade: Fanuc / Siemens / Syntec
- Spindle oil cooler for thermal stability
- CTS – Coolant Through Spindle (center coolant)
- Renishaw tool probe TS27R for automatic tool setting
- Renishaw workpiece probe OMP60 for in-process measurement
- ZF/BF gearbox for high-torque heavy cutting
- Gear head or manual/auto angle head for multi-angle machining
- Chain-type ATC (higher capacity)
- Heidenhain linear scales for closed-loop precision
- Air conditioner for electrical cabinet
- 4th axis rotary table + tailstock + hydraulic station
- 5th axis rotary table + hydraulic station for complex contours
- DEX Taiwan disc-type tool changer
Why Choose GMC2014 Gantry Machining Center?
- 🔹 Large Travel & Heavy Load: X-axis travel up to 2000mm, worktable load capacity 3.5 tons for large workpieces

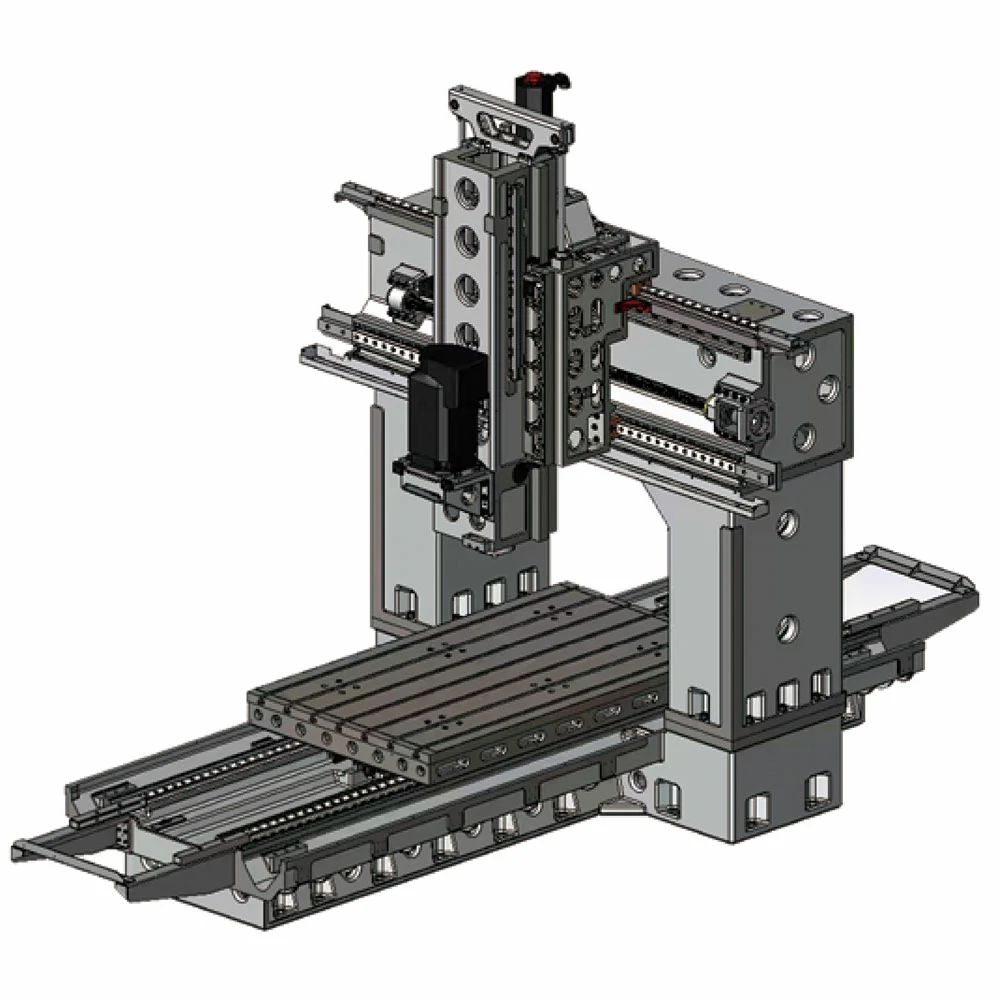

- 🔹 High-Rigidity Gantry Structure: Double-column + beam frame design ensures stability under heavy cutting
- 🔹 High Precision Guaranteed: Laser interferometer tested before shipment: positioning ±0.008mm, repeatability ±0.005mm
- 🔹 Imported Core Components: HIWIN guideways/screws, NSK/Nachi bearings, Schneider electrics for reliability
- 🔹 Smart Expansion Ready: Supports Renishaw probing, CTS coolant, angle heads for flexible production
- 🔹 CE Certified Safety: Full compliance with European safety standards
Applications of GMC2014 Gantry Machining Center
The GMC2014 gantry machining center is engineered for high-precision, high-efficiency machining of large and complex workpieces, including:
- ✅ Large mold manufacturing: injection molds, die-casting molds, stamping dies, plastic molds
- ✅ Automotive components: engine blocks, transmission housings, body panels, chassis structures
- ✅ Aerospace structural parts: frames, beams, ribs in aluminum/titanium/composite materials
- ✅ Energy equipment: wind turbine hubs, nuclear valve bodies, hydro guide vanes, PV bracket molds
- ✅ General machinery: large housings, bases, brackets, flanges
- ✅ Rail transit & shipbuilding: large structural component precision machining
For teams evaluating machining strategies for precision mold manufacturing, industry resources like
SME (Society of Manufacturing Engineers) offer practical guides on gantry milling best practices and process optimization.

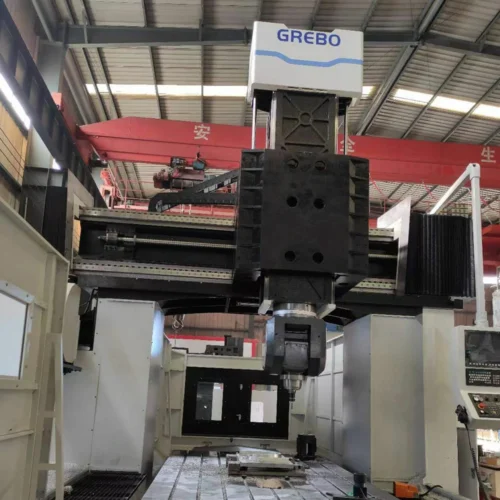

If your project involves similar large-scale mold components, explore our
gantry machining center series or learn how we approach
precision mold CNC solutions across industries.
